Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

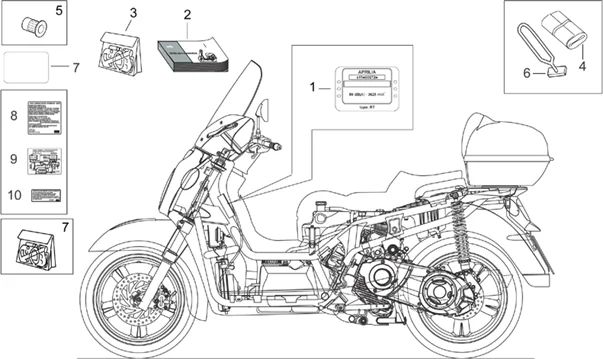

Chassis : 28.36 GROUPE COMPLEMENTAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.36.PNG)
1 |
AP8157977 - PLAQUETTE CONSTRUCTEUR; More informationQuantity required : 1 |
||||||
|
1 |
AP8166247 - TARGHETTA ID.COSTRUTTORE More informationQuantity required : 1 |
||||||
|
2 |
AP8104209 - LIVRET D'UTIL.ET ENTRET. More informationQuantity required : 1 |
||||||
|
3 |
AP8167129 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
3 |
AP8177442 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
3 |
AP8166377 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
3 |
AP8166204 - DECALCO SERIE More informationQuantity required : 1 |
||||||
|
3 |
AP8166166 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
4 |
AP8104677 - TROUSSE ATTREZZI More informationQuantity required : 1 |
||||||
|
4 |
AP8104205 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
5 |
AP8201457 - RIVET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.JPG)
6 |
AP8120177 - ELASTIQUE SUPPORT FEU More informationQuantity required : 1 |
||||||
|
7 |
AP8157976 - PLAQUETTE ECE; More informationQuantity required : 1 |
||||||
|
8 |
AP8166389 - DECALCO EMISSIONI INQUINANTI More informationQuantity required : 1 |
||||||
|
8 |
AP8167132 - DECALCO EMISSIONI INQUINANTI More informationQuantity required : 1 |
||||||
|
9 |
AP8166390 - DECALCO SCHEMA SHEED More informationQuantity required : 1 |
||||||
|
9 |
AP8167139 - DECALCO SCHEMA SHED More informationQuantity required : 1 |
||||||
|
10 |
AP8166388 - DECALCO EMISSIONI SONORE More informationQuantity required : 1 |
||||||
|
10 |
AP8177592 - DECALCO EMISSIONI SONORE More informationQuantity required : 1 |
||||||
|
11 |
AP8166478 - DECALCO SERIE TECNICA More informationQuantity required : 1 |
