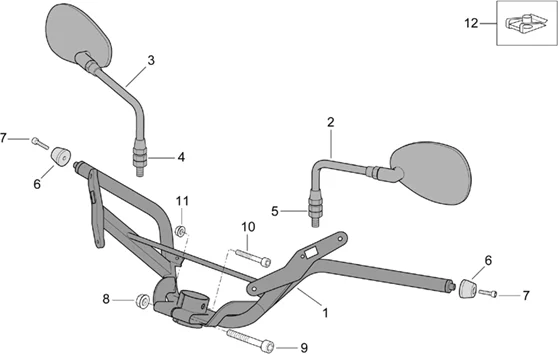

Chassis : 28.18 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.18.PNG)
1 |
AP8118578 - GUIDON; More informationQuantity required : 1 |
||||||
|
2 |
AP8104527 - MIROIR RETROVISEUR GCHE More informationQuantity required : 1 |
||||||
|
3 |
AP8104526 - MIROIR RETROVISEUR DTE More informationQuantity required : 1 |
||||||
|
4 |
AP8121644 - ECROU AVEC PINCE CTTE DTE More informationQuantity required : 1 |
||||||
|
5 |
AP8121645 - ECROU AVEC PINCE CTTE GCHE More informationQuantity required : 1 |
||||||
|
6 |
AP8104384 - MASSE ANTIVIBRATILE GUIDON; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
7 |
AP8150165 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
8 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/2/img/71822.jpg)
9 |
AP8150088 - VIS GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
10 |
AP8150277 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
11 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
12 |
AP8102381 - CLIP More informationQuantity required : 2 |
