Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

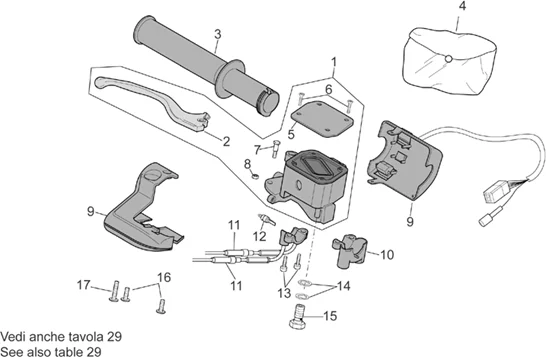

Chassis : 28.20 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.20.PNG)
1 |
AP8113928 - MA?T. CYL. FREIN AV; More informationQuantity required : 1 |
||||||
|
1 |
AP8133679 - POMPA FRENO ANT.DX More informationQuantity required : 1 |
||||||
|
2 |
AP8118542 - LEVIER FREIN; More informationQuantity required : 1 |
||||||
|
3 |
AP8118643 - COUPLE MANETTES, NOIR More informationQuantity required : 1 |
||||||
|
4 |
AP8113864 - KIT REVISION POMPE; More informationQuantity required : 1 |
||||||
|
6 |
AP8113859 - VIS COUVERCLE POMPE; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
7 |
AP8125757 - VIS LEVIER More informationQuantity required : 1 |
||||||
|
8 |
AP8213298 - ECROU More informationQuantity required : 1 |
||||||
|
9 |
AP8127572 - DEVIOLUCI DX More informationQuantity required : 1 |
||||||
|
9 |
AP8127357 - DEVIATEUR FEUX DTE; More informationQuantity required : 1 |
||||||
|
10 |
AP8118582 - SIEGE COMM. GAZ; More informationQuantity required : 1 |
||||||
|
11 |
AP8114447 - CABLE FERMETURE GAZ More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
12 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032- More informationQuantity required : 1 |
||||||
|
12 |
AP8127571 - INTERRUTTORE STOP More informationQuantity required : 1 |
||||||
|
13 |
AP8150053 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
14 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
15 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
16 |
AP8152268 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
17 |
AP8152270 - VIS More informationQuantity required : 1 |
