Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

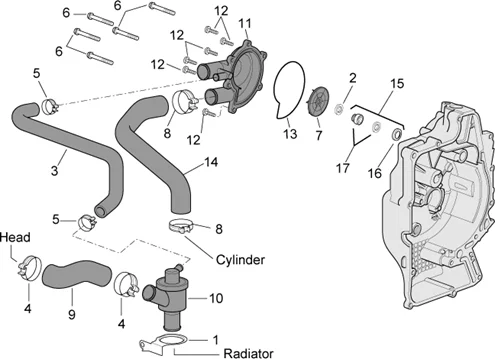

Moteur : 29.45 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_29.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/3/img/69133.jpg)
1 |
840062 - CUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/0/3/img/70403.jpg)
2 |
871799 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/6/img/72876.jpg)
4 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001915- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
6 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/5/2/8/img/151528.jpg)
7 |
WATER PUMP IMPELLER "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 400-500 CC -1A002345- More informationQuantity required : 1 |
||||||
|
7 |
WATER PUMP IMPELLER "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 400-500 CC -1A002345- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/8/img/72878.jpg)
8 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -CM001917- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/7/img/69167.jpg)
9 |
COOLANT PIPE "PIAGGIO GENUINE PART" 400 X-EVO, MP3, X9, X10/GILERA 500 NEXUS, FUOCO -840826- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/3/img/69563.jpg)
10 |
THERMOSTAT "PIAGGIO GENUINE PART" 400-500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, NEXUS -848140- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/2/img/72802.jpg)
11 |
WATER PUMP COVER (1 ALUMINIUM INLET + 1 ALUMINIUM OUTLET - 1 BRASS OUTLET ON REAR) "PIAGGIO GENUINE PART" 400-500 MP3, X-EVO 2007>/GILERA 500 FUOCO, NEXUS/400-500 ATLANTIC, SCARABEO -B019381- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/2/img/66032.jpg)
12 |
SCREW - (M5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER +SCOOTER -259151- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/1/img/68711.jpg)
13 |
O'RING GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -827884- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/0/img/72800.jpg)
14 |
COOLANT HOSE- FROM WATER PUMP TO CYLINDER "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER 400-500 CC -B0192155- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/2/5/img/66925.jpg)
15 |
SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -497486- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
16 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/1/1/img/174611.JPG)
17 |
1A018564 - SEAL RING More informationQuantity required : 1 |
||||||
|
17 |
1A018564 - SEAL RING More informationQuantity required : 1 |
