Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

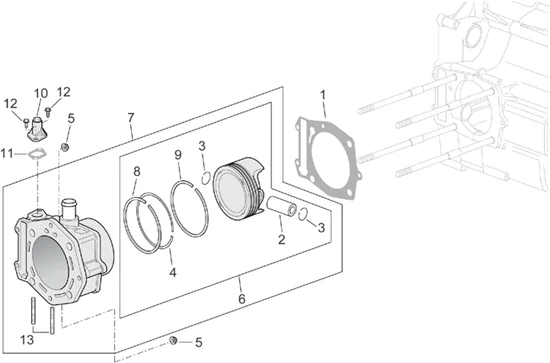

Moteur : 29.40 CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_29.40.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/3/img/68903.jpg)
1 |
CYLINDER BASE GASKET- 0,8MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -830275- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/5/img/68905.jpg)
1 |
CYLINDER BASE GASKET- 0,4MM "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 -830277- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/8/img/68698.JPG)
2 |
827820 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/9/img/68729.jpg)
3 |
828116 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/7/img/68687.jpg)
4 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 500 CC -827706- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
5 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 2 |
||||||
6 |
8328120004 - GR.PISTON More informationQuantity required : 1 |
||||||
|
6 |
8328120003 - GR.PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/0/img/69020.jpg)
6 |
8328120002 - GR.PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/7/img/69017.jpg)
8 |
PISTON COMPRESSION RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 500 CC -832770- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/8/img/68688.jpg)
9 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 500 CC -827707- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.JPG)
10 |
82650R - TENDEUR More informationQuantity required : 1 |
||||||
|
10 |
82650R - TENDEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
11 |
TIMING SYTEM TENSIONER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -847928- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
12 |
B016777 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/0/img/139390.jpg)
13 |
STUD BOLT (M8X3X46) "PIAGGIO GENUINE PART" MUILTI-PURPOSE - COMMON TO THE RANGE -1A003632R- More informationQuantity required : 2 |
