Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

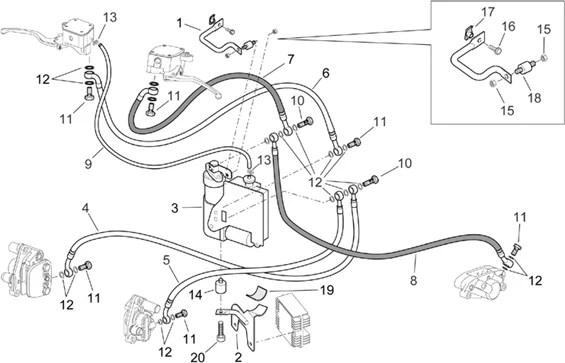

Chassis : 28.30 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.30.PNG)
1 |
AP8134972 - STAFFA SUP.FIX MODULATORE More informationQuantity required : 1 |
||||||
|
2 |
AP8134973 - STAFFA INF.FIX MODULATORE More informationQuantity required : 1 |
||||||
|
3 |
AP8133653 - MODULATORE More informationQuantity required : 1 |
||||||
|
4 |
AP8133678 - TUBO FRENO MODUL.-PINZA DX More informationQuantity required : 1 |
||||||
|
5 |
AP8133658 - TUBO FRENO MODULAT.-PINZA SX More informationQuantity required : 1 |
||||||
|
6 |
AP8133657 - TUBO FRENO MODULAT.-POMPA DX More informationQuantity required : 1 |
||||||
|
7 |
AP8133656 - TUBO FRENO MODULAT.-POMPA SX More informationQuantity required : 1 |
||||||
|
8 |
AP8133659 - TUBO FRENO MODULAT.-PINZA POST More informationQuantity required : 1 |
||||||
|
9 |
AP8133714 - TUBO BASSA PRESSIONE More informationQuantity required : 1 |
||||||
|
10 |
AP8133712 - VITE TUBO OLIO DOPPIA More informationQuantity required : 2 |
||||||
|
11 |
AP8133711 - VITE TUBO OLIO More informationQuantity required : 6 |
||||||
|
12 |
AP8133715 - ROSETTA IN RAME More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/8/5/img/46685.jpg)
14 |
SILENTBLOC FOR EXHAUST "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO -AP8120910- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
16 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/9/5/img/49595.jpg)
18 |
AP8144061 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
19 |
AP8117041 - EPONGE ADHESIVE; More informationQuantity required : 1 |
||||||
|
20 |
AP8152112 - VIS More informationQuantity required : 1 |
