Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

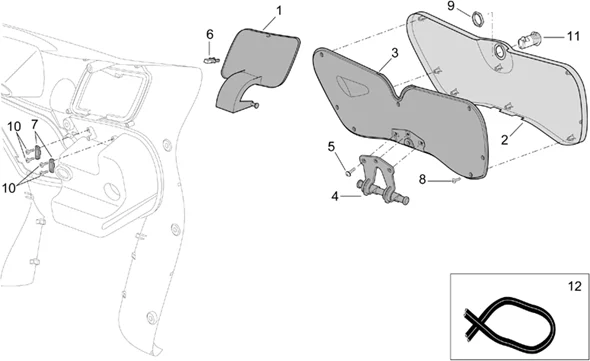

Chassis : 28.10 CARROSSERIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.10.PNG)
1 |
AP8149200 - ABATTANT ACCES, NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8149205 - ABATT.PORTE-OBJ., GRIS; More informationQuantity required : 1 |
||||||
|
3 |
AP8158970 - CORNICHE; More informationQuantity required : 1 |
||||||
|
4 |
AP8168156 - CHARNIERE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 3 |
||||||
|
6 |
AP8104429 - BOUCHON DE FERMETURE More informationQuantity required : 1 |
||||||
|
7 |
AP8134799 - PLAQUETTE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
8 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 8 |
||||||
|
9 |
AP8102523 - ECROU SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 4 |
||||||
|
11 |
AP8104584 - SERRURE COFFRE More informationQuantity required : 1 |
||||||
|
12 |
AP8220531 - GUARNIZIONE BAULETTO PORT.7X4 More informationQuantity required : 1 |
