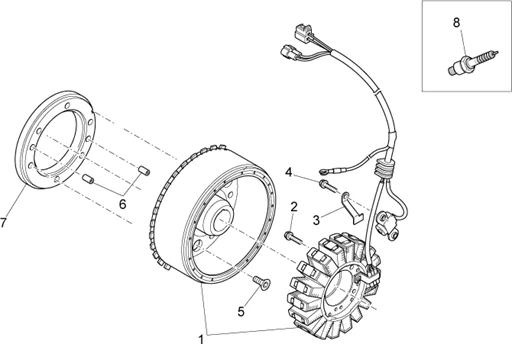

Moteur : 29.44 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.44.PNG)
1 |
855011 - VOLANT CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
2 |
855799 - VIS BRIDE M5X0,8 L.28 EX 7 More informationQuantity required : 3 |
||||||
|
3 |
855489 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
4 |
AP8152272 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
5 |
840542 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.JPG)
6 |
484993 - PIVOT DE CENTR. More informationQuantity required : 2 |
||||||
|
7 |
855180 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/4/5/img/67845.jpg)
8 |
SPARK PLUG "NGK" CR8EKB "PIAGGIO GENUINE PART" 125-300 MP3, BEVERLY, X7, GTS/APRILIA 125 ATLANTIC/GILERA 125 NEXUS/MOTO-GUZZI GRISO, NORGE, STELVIO -639687- More informationQuantity required : 2 |
