Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

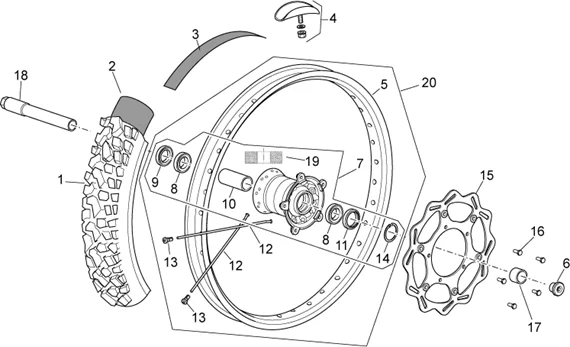

Chassis : 28.17 ROUE AV NUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_28.17.PNG)
1 |
855743 - PNEU AVANT 80/100 21" More informationQuantity required : 1 |
||||||
|
2 |
855745 - CHAMBRE A AIR 21" CROSS More informationQuantity required : 1 |
||||||
|
3 |
AP8109001 - FLAP ROUE AVANT More informationQuantity required : 1 |
||||||
|
4 |
AP9100457 - STAFFA BLOCC.PNEUM.ANT.1,60 More informationQuantity required : 1 |
||||||
|
5 |
855611 - JANTE AVANT 1,6X21", NOIR More informationQuantity required : 1 |
||||||
|
6 |
AP9100171 - TAPPO M22 More informationQuantity required : 1 |
||||||
|
7 |
AP9100225 - ASSIEME MOZZO RUOTA ANTERIORE More informationQuantity required : 1 |
||||||
|
8 |
831615 - ROULEMENT More informationQuantity required : 2 |
||||||
|
9 |
AP9100228 - ANELLO DI TENUTA D.28 D.42 SP7 More informationQuantity required : 1 |
||||||
|
10 |
AP9100226 - DISTANZIALE INT.L=69,7 More informationQuantity required : 1 |
||||||
|
11 |
AP9100227 - ANELLO DI TENUTA D.32 D.42 SP7 More informationQuantity required : 1 |
||||||
|
12 |
AP9100224 - RAGGIO D=3,5-L=233-21" More informationQuantity required : 36 |
||||||
|
13 |
AP9100057 - NIPPLO ANTERIORE D=3,5 More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/7/img/97067.jpg)
14 |
AP8121334 - BAGUE; More informationQuantity required : 1 |
||||||
|
15 |
855747 - DISQUE FREIN AVANT More informationQuantity required : 1 |
||||||
|
16 |
855625 - VIS BRIDE M6X16 More informationQuantity required : 5 |
||||||
|
17 |
AP9100229 - DISTANZIALE ESTERNO L=26,3 More informationQuantity required : 1 |
||||||
|
18 |
855203 - AXE DE ROUE AV More informationQuantity required : 1 |
||||||
|
19 |
AP9100318 - SUPPORT More informationQuantity required : 1 |
||||||
|
20 |
891012 - ROUE AV NUE More informationQuantity required : 1 |
