Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

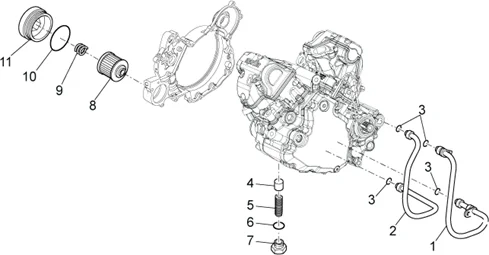

Moteur : 29.27 LUBRIFICATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.27.PNG)
1 |
851236 - TUYAU More informationQuantity required : 1 |
||||||
|
2 |
851235 - FEED PIPE More informationQuantity required : 1 |
||||||
|
3 |
AP9150347 - O-RING 11X2 More informationQuantity required : 4 |
||||||
|
4 |
853836 - SOUP.DECHARGE More informationQuantity required : 1 |
||||||
|
5 |
853837 - RESSORT SOUP. DECH. More informationQuantity required : 1 |
||||||
|
6 |
AP9150476 - (*)O-RING 11.11X1.78 More informationQuantity required : 1 |
||||||
|
7 |
853838 - BOUCHON SOUPAPE More informationQuantity required : 1 |
||||||
|
8 |
853517 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/8/img/72618.jpg)
9 |
OIL FILTER FIXING SPRING "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, RX, SX, 450 RXV, SXV -AP9150167- More informationQuantity required : 1 |
||||||
|
10 |
855706 - JOINT TORIQUE 53.00X3.00 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/1/9/img/69619.jpg)
11 |
OIL FILTER COVER "PIAGGIO GENUINE PART" 350 BEVERLY/APRILIA 125 RS, RX, SX, 450-550 RXV, SXV -851295- More informationQuantity required : 1 |
