Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

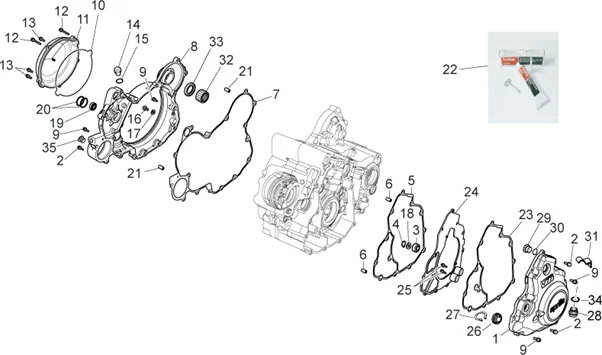

Moteur : 29.25 CARTER MOTEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.25.PNG)
1 |
851220 - COUVERCLE D'ALLUMAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
2 |
AP8152280 - VIS BRIDE More informationQuantity required : 22 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/4/img/69694.jpg)
3 |
WATER PUMP GASKET"PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD, DORSODURO, 450-550 RXV, RSV -855031- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
4 |
CIRCLIPS (25X26,9X1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959- More informationQuantity required : 1 |
||||||
|
5 |
851221 - JOINT COUVERCLE More informationQuantity required : 1 |
||||||
|
6 |
AP9150118 - BUSSOLA DI RIFERIMENTO More informationQuantity required : 2 |
||||||
|
7 |
851219 - JOINT COUVERCLE More informationQuantity required : 1 |
||||||
|
8 |
851217 - COUVERCLE CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
9 |
AP8152282 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/7/7/img/97677.jpg)
10 |
AP9150150 - O-RING 171.13X2.62 More informationQuantity required : 1 |
||||||
|
11 |
AP9150094 - COPERCHIO FRIZIONE More informationQuantity required : 1 |
||||||
|
12 |
AP9150395 - VITE TEF M6X1 - L60 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
AP8152279 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
14 |
AP9150410 - TAPPO CARICO OLIO CAMB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/9/5/0/img/61950.JPG)
15 |
AP9150356 - O-RING 18.72X2.62 More informationQuantity required : 1 |
||||||
|
16 |
AP9150473 - VITE TBEI M6X10 More informationQuantity required : 1 |
||||||
|
17 |
AP9150351 - ROSETTA D6-D12-SP1 More informationQuantity required : 1 |
||||||
|
18 |
AP9150522 - SCODELLINO PARAOLIO More informationQuantity required : 1 |
||||||
|
19 |
85114R - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/4/6/1/img/37461.jpg)
20 |
851012 - BAGUE 20X1 More informationQuantity required : 2 |
||||||
|
21 |
851017 - DOUILLE More informationQuantity required : 2 |
||||||
|
22 |
855252 - PATE A SCELLER More informationQuantity required : 1 |
||||||
|
23 |
855003 - JOINT BRIDE More informationQuantity required : 1 |
||||||
|
24 |
855260 - GR. FLASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.JPG)
25 |
AP8152274 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/8/img/66688.JPG)
26 |
485693 - JAUGE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/9/2/0/img/96920.jpg)
27 |
873804 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
|
28 |
AP9150174 - TAPPO SCARICO OLIO MOT More informationQuantity required : 1 |
||||||
|
29 |
853852 - BOUCHON HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
30 |
1A009397 - JOINT "OR" More informationQuantity required : 1 |
||||||
|
30 |
1A009397 - JOINT "OR" More informationQuantity required : 1 |
||||||
|
31 |
AP9150462 - PASSACAVO SENS.MARCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/4/img/45824.jpg)
32 |
AP8110067 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/4/img/66184.jpg)
33 |
SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON VARIATOR SIDE) PIAGGO - COMMON FOR SCOOTER 50CC 4 STROKE -2879633- More informationQuantity required : 1 |
||||||
|
34 |
AP9150349 - ROSETTA DI ALLUMINIO D More informationQuantity required : 1 |
||||||
|
35 |
851240 - BOUCHON M10X1 More informationQuantity required : 1 |
