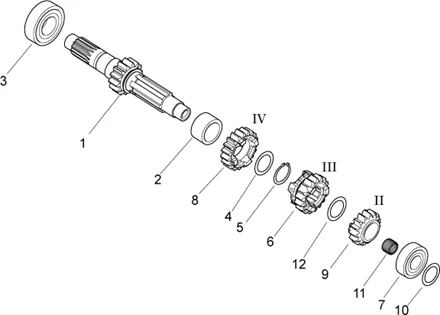

Moteur : 29.38 ARBRE PRIMAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.38.PNG)
1 |
855218 - ARBRE PRIMAIRE More informationQuantity required : 1 |
||||||
|
2 |
AP9150216 - BUSSOLA NITRURATA More informationQuantity required : 1 |
||||||
|
3 |
85102R - ROULEMENT A BILLES D25-D52-SP1 More informationQuantity required : 1 |
||||||
|
4 |
AP9150297 - RONDELLA RASAMENTO More informationQuantity required : 1 |
||||||
|
5 |
AP9150302 - ANELLO ELASTICO More informationQuantity required : 1 |
||||||
|
6 |
855220 - ENGRENAGE 3^ More informationQuantity required : 1 |
||||||
|
7 |
AP9150362 - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
|
8 |
855221 - ENGRENAGE 4^ More informationQuantity required : 1 |
||||||
|
9 |
855219 - ENGRENAGE 2^ More informationQuantity required : 1 |
||||||
|
10 |
AP9150294 - RONDELLA RASAMENTO More informationQuantity required : 1 |
||||||
|
11 |
855789 - CAGE A ROULEAUX D20-D24-SP.17 More informationQuantity required : 1 |
||||||
|
12 |
AP9150296 - RONDELLA RASAMENTO More informationQuantity required : 1 |
