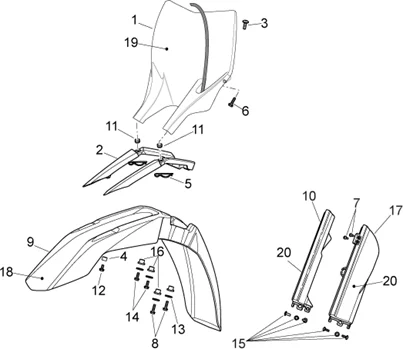

Chassis : 28.07 CARROSSERIE PARTIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_28.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/5/5/img/97155.JPG)
1 |
FRONT FORK HEAD "PIAGGIO GENUINE PART" APRILIA 450 MXV -AP8184813- More informationQuantity required : 1 |
||||||
2 |
AP8156344 - TIRANT GARDE-BOUE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
4 |
AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5 More informationQuantity required : 2 |
||||||
|
5 |
AP8201431 - GOUPILLE More informationQuantity required : 2 |
||||||
|
6 |
AP9100633 - VITE AUTOFIL. 4,2X13 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/3/img/71843.jpg)
7 |
AP8150246 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
8 |
SCREW - FLANGE -AP8152284- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/0/0/img/97100.jpg)
9 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 450-550 RXV, SXV -AP8156343- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/0/7/img/97307.jpg)
10 |
RIGHT FORK COVER "PIAGGIO GENUINE PART" APRILIA 450-550 RSV, RXV -AP9100441- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
11 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
12 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
13 |
AP8150015 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.JPG)
14 |
598839 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/5/6/img/97356.jpg)
15 |
AP9100548 - VITE CON BOCCOLA M6X1 L=14 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/3/3/img/97333.jpg)
16 |
AP9100501 - BUSSOLA COLLETTO D20-D10,5-SP3 More informationQuantity required : 4 |
||||||
|
17 |
LEFT FORK COVER "PIAGGIO GENUINE PART" APRILIA 450-550 RSV, RXV -AP9100440- More informationQuantity required : 1 |
||||||
|
18 |
890575 - DECALCO More informationQuantity required : 1 |
||||||
|
19 |
890691 - DECALCO More informationQuantity required : 1 |
||||||
|
20 |
852038 - PLAQUETTE More informationQuantity required : 2 |
