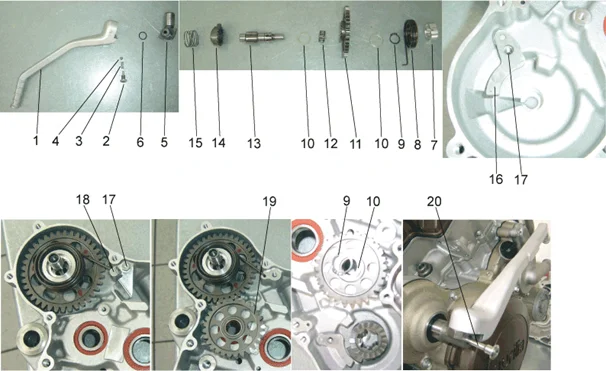

Moteur : 29.42 GROUPE DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.42.PNG)
1 |
891060 - LEVIER DEMARRAGE More informationQuantity required : 1 |
|||||||||
|
2 |
891049 - VIS More informationQuantity required : 1 |
|||||||||
|
3 |
891048 - RESSORT More informationQuantity required : 1 |
|||||||||
|
4 |
2955916 - BILLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/3/img/66283.jpg)
4 |
295591 - BILLE More informationQuantity required : 1 |
|||||||||
|
5 |
855006 - RALLONGE More informationQuantity required : 1 |
|||||||||
|
6 |
855535 - BAGUE D'ETANCHEITE 17X1 More informationQuantity required : 1 |
|||||||||
|
7 |
851126 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
8 |
855528 - RETOUR DEMARRAGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/5/img/63815.JPG)
9 |
006417 - CIRCLIPS S00641700 More informationQuantity required : 2 |
|||||||||
|
10 |
851200 - GOBELET D17,1 D25 S 0,8 More informationQuantity required : 3 |
|||||||||
|
11 |
851062 - ENGRENAGE More informationQuantity required : 1 |
|||||||||
|
12 |
855767 - CAGE A ROULEAUX K17X21X10 More informationQuantity required : 1 |
|||||||||
|
13 |
855005 - AXE More informationQuantity required : 1 |
|||||||||
|
14 |
851127 - PIGNON More informationQuantity required : 1 |
|||||||||
|
15 |
851128 - RESSORT PIGNON More informationQuantity required : 1 |
|||||||||
|
16 |
891090 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
17 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
|
18 |
851149 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
|
19 |
851358 - ENGRENAGE More informationQuantity required : 1 |
|||||||||
|
20 |
853518 - VIS SPECIALE More informationQuantity required : 1 |
|||||||||
