Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

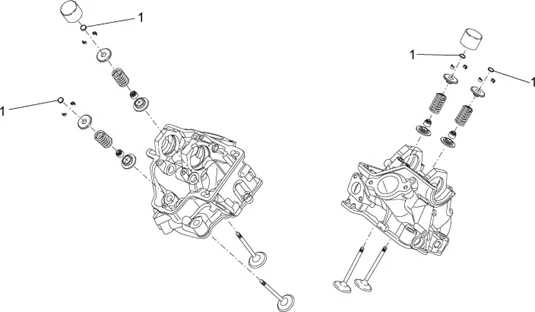

Moteur : 29.32 PLAQUETTES SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.32.PNG)
1 |
CM238801 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238822 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238823 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238824 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238825 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238826 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238827 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238828 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238829 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238830 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238831 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238832 - PLAQUETTE 2,275 More informationQuantity required : 8 |
||||||
|
1 |
CM238833 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238834 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238835 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238836 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238837 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238838 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238821 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238820 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238819 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238802 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238803 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238804 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238805 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238806 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238807 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238808 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238809 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238810 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238811 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238812 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238813 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238814 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238815 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238816 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238817 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238818 - PLAQUETTE More informationQuantity required : 8 |
||||||
|
1 |
CM238839 - PLAQUETTE More informationQuantity required : 8 |
