Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

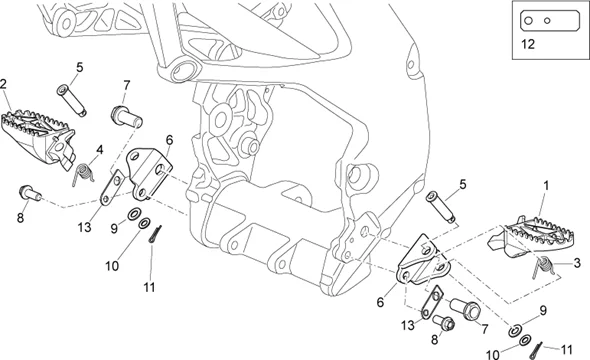

Chassis : 28.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_28.02.PNG)
1 |
AP9100193 - PEDANA SX More informationQuantity required : 1 |
||||||
|
2 |
AP9100194 - PEDANA DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/1/img/72601.jpg)
3 |
AP9100195 - MOLLA RICHIAMO PEDANA LATO SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/0/6/img/97206.jpg)
4 |
RETURN SPRING FOR RIDER FOOTREST (RIGHT) "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 450-550 RXV, SXV -AP9100196- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/2/img/72602.jpg)
5 |
AP9100197 - PERNO ROTAZIONE PEDANA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/3/9/img/97239.jpg)
6 |
AP9100275 - STAFFA ATTACCO PEDANA More informationQuantity required : 2 |
||||||
|
7 |
AP9100390 - VITE M12X1,25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
8 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/5/img/50945.jpg)
8 |
AP8152058 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
9 |
AP8152176 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
10 |
AP8150017 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
AP8101606 - GOUPILLE More informationQuantity required : 2 |
||||||
|
12 |
855269 - TTLE More informationQuantity required : 2 |
||||||
|
13 |
891217 - PLAQUETTE More informationQuantity required : 2 |
