Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

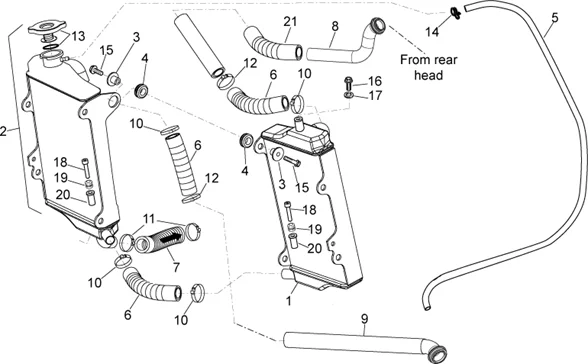

Chassis : 28.14 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_28.14.PNG)
1 |
855159 - RADIATEUR G. More informationQuantity required : 1 |
||||||
|
2 |
855160 - RADIATEUR D. More informationQuantity required : 1 |
||||||
|
3 |
AP9100376 - BUSSOLA FISSAGGIO RADIATORI More informationQuantity required : 2 |
||||||
|
4 |
AP9100946 - SILENT BLOCK More informationQuantity required : 2 |
||||||
|
5 |
AP8220402 - TUYAU More informationQuantity required : 1 |
||||||
|
6 |
CM238404 - TUYAU TRM D23 D15 L115 More informationQuantity required : 3 |
||||||
|
7 |
AP9100557 - TUBO RADIATORE DX/POMPA More informationQuantity required : 1 |
||||||
|
8 |
855166 - TUYAU RACCORD G. More informationQuantity required : 1 |
||||||
|
9 |
855167 - TUYAU RACCORD D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
10 |
AP8201169 - COLLIER CLIC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/1/4/img/97314.jpg)
11 |
AP9100456 - FASCETTA CLIC 26X8 More informationQuantity required : 2 |
||||||
|
12 |
AP9100697 - FASCETTA CLIC 21X8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/5/6/1/img/97561.jpg)
13 |
RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 450-550 SXV, RXV -AP9100948- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
14 |
AP8101595 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
15 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
16 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/2/img/50962.jpg)
17 |
AP8152184 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/2/img/50852.jpg)
18 |
AP8150265 - VIS TCEI M 5 X 25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
19 |
AP8120223 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
20 |
AP8121266 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
|
21 |
CM223801 - TUYAU ESSENCE More informationQuantity required : 1 |
