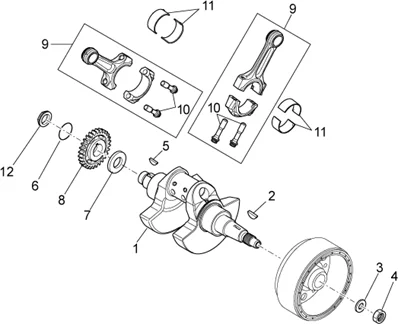

Moteur : 29.28 ARBRE SORTIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.28.PNG)
1 |
8910345002 - ARBRE MOTEUR CPL. More informationQuantity required : 1 |
||||||
|
2 |
851007 - CLAVETTE 3X4,8 More informationQuantity required : 1 |
||||||
|
3 |
851357 - RONDELLE 28X14X2,5 More informationQuantity required : 1 |
||||||
|
4 |
AP9150436 - DADO SPECIALE M14X1 More informationQuantity required : 1 |
||||||
|
5 |
AP9150402 - LINGUE.A DISCO 4X6.5 U More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/8/6/8/img/97868.jpg)
6 |
AP9150525 - (*) O-RING 16X3,5 More informationQuantity required : 1 |
||||||
|
7 |
851215 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
8 |
AP9150288 - PIGNON More informationQuantity required : 1 |
||||||
|
9 |
855530 - BIELLE More informationQuantity required : 2 |
||||||
|
10 |
AP9150127 - VITE FISSAGGIO CAPPELLO BIELLA More informationQuantity required : 4 |
||||||
|
11 |
AP9150323 - SEMICUSC.BIELLA (VERDE More informationQuantity required : 4 |
||||||
|
11 |
AP9150454 - SEMICUSC.BIELLA (BLU) More informationQuantity required : 4 |
||||||
|
11 |
AP9150455 - SEMICUSC.BIELLA (GIALL More informationQuantity required : 4 |
||||||
|
12 |
AP9150236 - DADO FLANGIATO M18X1,2 More informationQuantity required : 1 |
