Vehicle Exploded View - APRILIA MXV 450 Cross 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

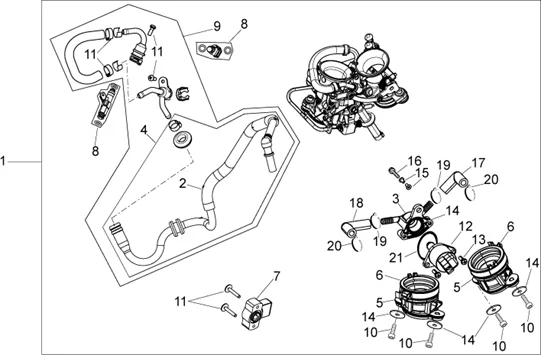

Moteur : 29.43 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/690/MXV_450_Cross_2008-2010_29.43.PNG)
1 |
8559284 - CORPS A PAPILLON CPL. More informationQuantity required : 1 |
||||||
|
2 |
855185 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
3 |
855728 - RACCORD D'ADMISS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.JPG)
4 |
AP8120446 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
5 |
853871 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
6 |
853877 - COLLIER More informationQuantity required : 2 |
||||||
|
7 |
AP9101010 - POTENZIOMETRO More informationQuantity required : 1 |
||||||
|
8 |
AP9101011 - INIETTORE More informationQuantity required : 2 |
||||||
|
9 |
AP9101012 - FUEL RAIL CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
10 |
709674 - VIS More informationQuantity required : 4 |
||||||
|
11 |
AP9101014 - KIT VITI, FASCETTE, CLIP More informationQuantity required : 1 |
||||||
|
12 |
855771 - MOTEUR STEPPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
13 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
14 |
013777 - RONDELLE S01377700 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/6/img/68586.jpg)
15 |
EXHAUST PROTECTION WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -826118- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
16 |
830061 - VIS More informationQuantity required : 1 |
||||||
|
17 |
CM239302 - TUYAU D'ASPIRATION More informationQuantity required : 1 |
||||||
|
18 |
CM239301 - TUYAU D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
19 |
CM002908 - COLLIER More informationQuantity required : 2 |
||||||
|
20 |
258469 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
21 |
SPACER- M23-M27 FOR SIDE STAND "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189- More informationQuantity required : 1 |
