Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

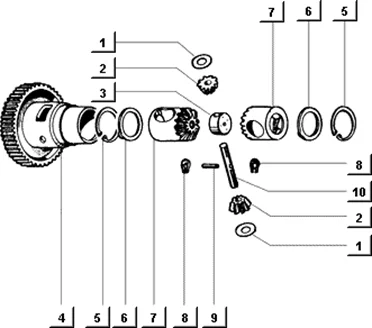

Moteur : T26 DIFFERENTIEL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T26.PNG)
1 |
239911 - RONDELLE More informationQuantity required : 2 |
||||||
|
2 |
4344714 - ENGRENAGE More informationQuantity required : 2 |
||||||
|
3 |
116238 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
4 |
2854244 - BOITIER DIFFER More informationQuantity required : 1 |
||||||
|
5 |
006646 - CIRCLIPS S00664600 More informationQuantity required : 2 |
||||||
|
6 |
116241 - RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
4344724 - PIGNON SOLEIL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/3/6/img/110436.jpg)
8 |
016708 - BAGUE More informationQuantity required : 2 |
||||||
|
9 |
116240 - GOUPILLE More informationQuantity required : 1 |
||||||
|
10 |
1199856 - PIVOT More informationQuantity required : 1 |
