Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

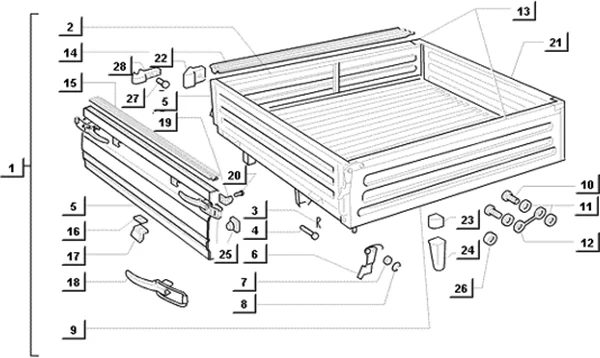

Châssis : T31 PIECES COMPOSANT LE CHASSIS (PLATEAU)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T31.PNG)
1 |
5684875 - PIANALE CPL PO More informationQuantity required : 1 |
||||||
|
1 |
REAR LOADING SURFACE "PIAGGIO GENUINE PART" PIAGGIO 50 APE 1998>2008 -6127605- More informationQuantity required : 1 |
||||||
|
1 |
CM0363025 - PLATEAU More informationQuantity required : 1 |
||||||
|
2 |
566918 - SPONDA LAT.SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/3/img/65353.JPG)
3 |
012761 - GOUPILLE S01276100 More informationQuantity required : 2 |
||||||
|
4 |
090742 - AXE More informationQuantity required : 2 |
||||||
|
5 |
566920 - PORTEL.POST** More informationQuantity required : 1 |
||||||
|
5 |
REAR DROP SIDE "PIAGGIO GENUINE PART" PIAGGIO 50 APE -5653886- More informationQuantity required : 1 |
||||||
|
6 |
118917 - POIGNEE DROITE More informationQuantity required : 1 |
||||||
|
6 |
116627 - POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/2/img/65422.jpg)
7 |
016604 - RONDELLE S01660400 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
8 |
005967 - CLIPS S00596700 More informationQuantity required : 2 |
||||||
|
9 |
566919 - SPONDA LAT.DX More informationQuantity required : 1 |
||||||
|
9 |
CM0314036 - PARTIE LAT. TROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
10 |
031091 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
11 |
003056 - RONDELLE More informationQuantity required : 6 |
||||||
|
12 |
565779 - CABLE More informationQuantity required : 2 |
||||||
|
14 |
566926 - GUAR.SPONDA** More informationQuantity required : 2 |
||||||
|
16 |
565869 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
17 |
566941 - CERNIERA ** More informationQuantity required : 2 |
||||||
|
18 |
264785 - POIGNEE More informationQuantity required : 2 |
||||||
|
19 |
264948 - ETRIER More informationQuantity required : 1 |
||||||
|
20 |
264783 - BOULON More informationQuantity required : 6 |
||||||
|
22 |
566925 - MONT.POS.DX** More informationQuantity required : 1 |
||||||
|
22 |
566924 - MONT.POS.SX** More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/5/img/65805.jpg)
26 |
184400 - ENTRETOISE AR More informationQuantity required : 2 |
||||||
|
27 |
264783 - BOULON More informationQuantity required : 2 |
||||||
|
28 |
264778 - GANCIO SPON** More informationQuantity required : 2 |
||||||
|
29 |
5684875 - PIANALE CPL PO More informationQuantity required : 1 |
||||||
|
30 |
REAR LOADING SURFACE "PIAGGIO GENUINE PART" PIAGGIO 50 APE 1998>2008 -6127605- More informationQuantity required : 1 |
