Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

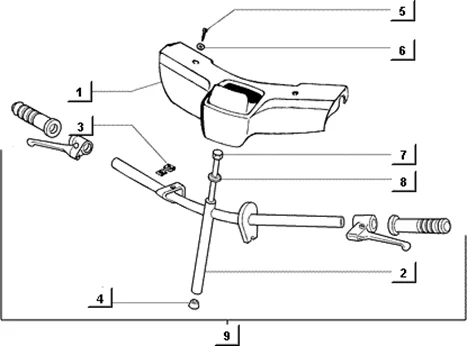

Guidon : T58 GUIDON COMPLET - CACHE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T58.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/5/8/9/img/118589.JPG)
1 |
261406 - PARTIE SUP GUIDON More informationQuantity required : 1 |
||||||
2 |
2679035 - GUIDON TM 50 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
3 |
NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/4/9/7/img/112497.jpg)
4 |
CONE - FOR HANDLEBAR TIGHTENING PIAGGIO 50 APE -116298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
5 |
008455 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
6 |
016670 - RONDELLE S01667000 More informationQuantity required : 2 |
||||||
|
7 |
226352 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/8/4/img/111284.jpg)
8 |
126612 - RONDELLE More informationQuantity required : 1 |
||||||
|
9 |
5669975 - GUIDON CPLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/4/4/img/111544.jpg)
10 |
116112 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/1/8/5/img/119185.JPG)
11 |
REAR SHOE BRAKE KIT (2 PAIRS) "PIAGGIO GENUINE PART" 50 APE -154998- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/0/2/img/111402.jpg)
12 |
117456 - RESSORT More informationQuantity required : 4 |
