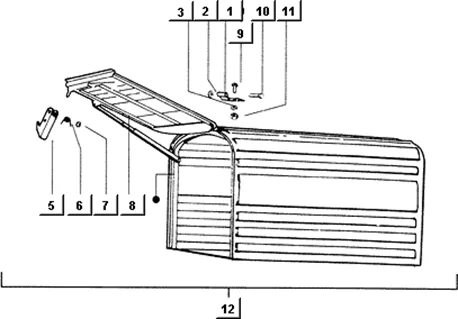

Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

Châssis : T47 FOURGON COMPLET
Fourgon complet
Search
1186425 - CHARNIERE

1
P2R reference P2R reference 115668
Maker reference Maker reference 1186425

1186425 - CHARNIERE

More information

Quantity required : 1
013769 - RONDELLE S01376900

2
P2R reference P2R reference 65361
Maker reference Maker reference 0137695

013769 - RONDELLE S01376900

More information

Quantity required : 2
016405 - RONDELLE S01640500

3
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

016405 - RONDELLE S01640500

More information

Quantity required : 6
118658 - CROCHET

5
P2R reference P2R reference 116395
Maker reference Maker reference 118658

118658 - CROCHET

More information

Quantity required : 2
118655 - RESSORT

6
P2R reference P2R reference 111339
Maker reference Maker reference 118655

118655 - RESSORT

More information

Quantity required : 2
005965 - ANNEAU S00596500

7
P2R reference P2R reference 63797
Maker reference Maker reference 0059655

005965 - ANNEAU S00596500

More information

Quantity required : 2
2469815 - ABATTANT

8
P2R reference P2R reference 122624
Maker reference Maker reference 2469815

2469815 - ABATTANT

More information

Quantity required : 1
000702 - VIS S00070200

9
P2R reference P2R reference 63750
Maker reference Maker reference 0007025

000702 - VIS S00070200

More information

Quantity required : 6
118651 - PIVOT

10
P2R reference P2R reference 111114
Maker reference Maker reference 118651

118651 - PIVOT

More information

Quantity required : 2
020105 - ECROU S02010500

11
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

020105 - ECROU S02010500

More information

Quantity required : 6
2469845 - FOURGON TRI 50

12
P2R reference P2R reference 124244
Maker reference Maker reference 2469845

2469845 - FOURGON TRI 50

More information

Quantity required : 1
