Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

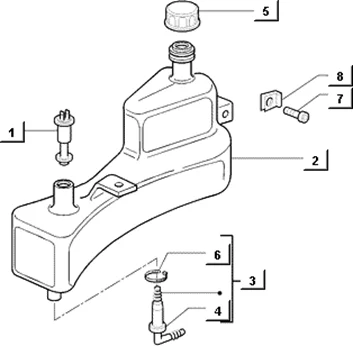

Châssis : T45 RESERVOIR D'HUILE
Reservoir d'huile
Search
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 STALKER, DNA/PIAGGIO 50 LIBERTY, ZIP 1998>2005 -573080-

1
P2R reference P2R reference 67092
Maker reference Maker reference 573080

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 STALKER, DNA/PIAGGIO 50 LIBERTY, ZIP 1998>2005 -573080-

More information

Quantity required : 1
566960 - RESERVOIR HUILE

2
P2R reference P2R reference 120410
Maker reference Maker reference 566960

566960 - RESERVOIR HUILE

More information

Quantity required : 1
OIL TANK UNION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -574362-

3
P2R reference P2R reference 67105
Maker reference Maker reference 574362

OIL TANK UNION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -574362-

More information

Quantity required : 1
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868-

4
P2R reference P2R reference 65825
Maker reference Maker reference 196868

FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868-

More information

Quantity required : 1
566962 - BOUCHON RÉSERVOIR DE HUILE C80

5
P2R reference P2R reference 112777
Maker reference Maker reference 566962

566962 - BOUCHON RÉSERVOIR DE HUILE C80

More information

Quantity required : 1
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888-

6
P2R reference P2R reference 70716
Maker reference Maker reference 879888

FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888-

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

7
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

More information

Quantity required : 2
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

8
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 3
