Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

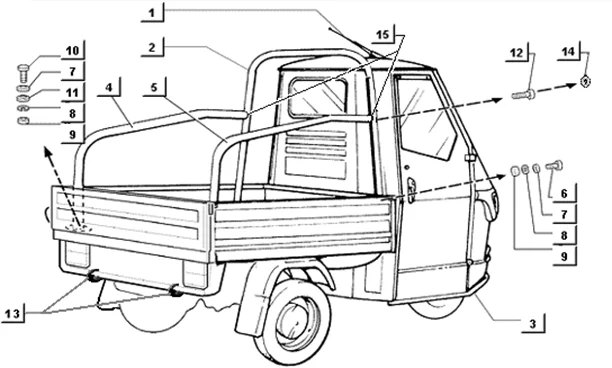

Châssis : T82 ROLL BAR - PROTECTIONS VERSION CROSS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T82.PNG)
1 |
1D001835 - ANTENNE More informationQuantity required : 1 |
||||||
|
3 |
5687780079 - PROTECTION More informationQuantity required : 1 |
||||||
|
4 |
CM0305015 - PUNTONE SX More informationQuantity required : 1 |
||||||
|
5 |
CM0305025 - PUNTONE DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
7 |
003058 - RONDELLE S00305800 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
9 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
10 |
031119 - BOULON More informationQuantity required : 6 |
||||||
|
13 |
255988 - TAMPON More informationQuantity required : 1 |
||||||
|
14 |
D9004871033 - BOUCHON More informationQuantity required : 2 |
||||||
|
15 |
5687925 - ELEMENT More informationQuantity required : 2 |
