Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

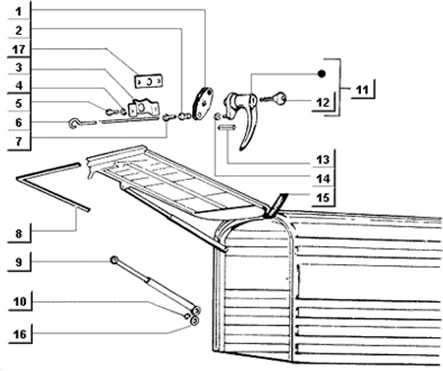

Châssis : T48 POIGNEE HAYON
Poignee hayon
Search
141833 - PLAQUETTE

1
P2R reference P2R reference 114765
Maker reference Maker reference 141833

141833 - PLAQUETTE

More information

Quantity required : 1
115817 - EMBOUT

2
P2R reference P2R reference 113320
Maker reference Maker reference 115817

115817 - EMBOUT

More information

Quantity required : 2
246616 - BARETTE

3
P2R reference P2R reference 113309
Maker reference Maker reference 246616

246616 - BARETTE

More information

Quantity required : 1
WASHER (4,2x7,6x0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404-

4
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404-

More information

Quantity required : 2
031027 - VIS S03102700

5
P2R reference P2R reference 65630
Maker reference Maker reference 0310275

031027 - VIS S03102700

More information

Quantity required : 2
118652 - TIRANT AR TL2

6
P2R reference P2R reference 111509
Maker reference Maker reference 118652

118652 - TIRANT AR TL2

More information

Quantity required : 2
031084 - BOULON

7
P2R reference P2R reference 65636
Maker reference Maker reference 0310845

031084 - BOULON

More information

Quantity required : 2
CM255506 - JOINT

8
P2R reference P2R reference 116375
Maker reference Maker reference CM255506

CM255506 - JOINT

More information

Quantity required : 1
TAIL GATE ACTUATOR "PIAGGIO GENUINE PARTS" APE -56606R-

9
P2R reference P2R reference 120853
Maker reference Maker reference 56606R

TAIL GATE ACTUATOR "PIAGGIO GENUINE PARTS" APE -56606R-

More information

Quantity required : 1
005965 - ANNEAU S00596500

10
P2R reference P2R reference 63797
Maker reference Maker reference 0059655

005965 - ANNEAU S00596500

More information

Quantity required : 2
HATCHBACK HANDLE (WITH LOCK) "PIAGGIO GENUINE PART" APE -257094-

11
P2R reference P2R reference 118838
Maker reference Maker reference 257094

HATCHBACK HANDLE (WITH LOCK) "PIAGGIO GENUINE PART" APE -257094-

More information

Quantity required : 1
KEYBLANK "PIAGGIO GENUINE PART" 50 NRG, TYPHOON , ZIP 1998>2005 -257710-

12
P2R reference P2R reference 66024
Maker reference Maker reference 257710

KEYBLANK "PIAGGIO GENUINE PART" 50 NRG, TYPHOON , ZIP 1998>2005 -257710-

More information

Quantity required : 1
217166 - PIVOT

13
P2R reference P2R reference 111344
Maker reference Maker reference 217166

217166 - PIVOT

More information

Quantity required : 1
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS and APE -804457-

14
P2R reference P2R reference 111084
Maker reference Maker reference 804457

NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457-

More information

Quantity required : 1
CM255507 - JOINT

15
P2R reference P2R reference 118455
Maker reference Maker reference CM255507

CM255507 - JOINT

More information

Quantity required : 1
003058 - RONDELLE S00305800

16
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 5
246387 - PLAQUE

17
P2R reference P2R reference 111886
Maker reference Maker reference 246387

246387 - PLAQUE

More information

Quantity required : 1
