Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

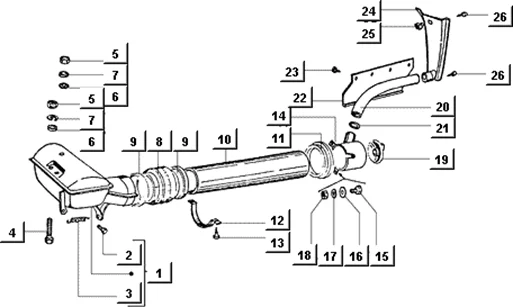

Châssis : T65 ENSEMBLE CONDUIT AIR CHAUD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T65.PNG)
1 |
2504235 - CHAUFFAGE More informationQuantity required : 1 |
||||||
|
2 |
031023 - VIS S03102300 More informationQuantity required : 1 |
||||||
|
3 |
125042 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/9/img/65619.JPG)
4 |
030084 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
5 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
6 |
003058 - RONDELLE S00305800 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
7 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 3 |
||||||
|
8 |
126921 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
9 |
257134 - COLLIER More informationQuantity required : 2 |
||||||
|
11 |
125091 - COLLARE More informationQuantity required : 1 |
||||||
|
12 |
125096 - PONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
13 |
008265 - VIS More informationQuantity required : 2 |
||||||
|
14 |
2183605 - WARMLUFTREGLER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
15 |
031056 - VIS More informationQuantity required : 3 |
||||||
|
16 |
003055 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
17 |
016405 - RONDELLE S01640500 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
18 |
020105 - ECROU S02010500 More informationQuantity required : 3 |
||||||
|
19 |
214163 - ETRANGLEUR AIR CHAUD More informationQuantity required : 1 |
||||||
|
20 |
2660145 - PIPE More informationQuantity required : 1 |
||||||
|
21 |
218354 - BOURRAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/2/img/65712.jpg)
23 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" 125 VESPA PX, APE -121668- More informationQuantity required : 4 |
||||||
|
24 |
218215 - DEFROSTER C80 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
25 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
26 |
SCREW - -008432- More informationQuantity required : 3 |
