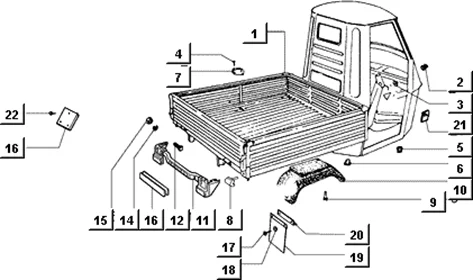

Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

Châssis : T30 CHASSIS - GARDE-BOUE
Chassis - garde-boue
Search
5684935 - CHASSIS

1
P2R reference P2R reference 124483
Maker reference Maker reference 5684935

5684935 - CHASSIS

More information

Quantity required : 1
5684945 - CHASSIS

1
P2R reference P2R reference 124487
Maker reference Maker reference 5684945

5684945 - CHASSIS

More information

Quantity required : 1
5684955 - CHASSIS

1
P2R reference P2R reference 124458
Maker reference Maker reference 5684955

5684955 - CHASSIS

More information

Quantity required : 1
5684965 - CHASSIS

1
P2R reference P2R reference 124484
Maker reference Maker reference 5684965

5684965 - CHASSIS

More information

Quantity required : 1
230329 - BOUCHON

2
P2R reference P2R reference 109846
Maker reference Maker reference 230329

230329 - BOUCHON

More information

Quantity required : 1
090958 - TAMPON

3
P2R reference P2R reference 65678
Maker reference Maker reference 0909585

090958 - TAMPON

More information

Quantity required : 2
SCREW - -008432-

4
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW - -008432-

More information

Quantity required : 4
190567 - TAMPON

5
P2R reference P2R reference 65810
Maker reference Maker reference 190567

190567 - TAMPON

More information

Quantity required : 1
119241 - BOUCHON

6
P2R reference P2R reference 110136
Maker reference Maker reference 119241

119241 - BOUCHON

More information

Quantity required : 3
225814 - COUVERCLE

7
P2R reference P2R reference 112774
Maker reference Maker reference 225814

225814 - COUVERCLE

More information

Quantity required : 2
127046 - TAMPON

8
P2R reference P2R reference 111984
Maker reference Maker reference 127046

127046 - TAMPON

More information

Quantity required : 2
244474 - RIVET

9
P2R reference P2R reference 110314
Maker reference Maker reference 244474

244474 - RIVET

More information

Quantity required : 8
567177 - GARDE BOUE GAUCHE

10
P2R reference P2R reference 116234
Maker reference Maker reference 567177

567177 - GARDE BOUE GAUCHE

More information

Quantity required : 1
567178 - GARDE BOUE DROIT

10
P2R reference P2R reference 117008
Maker reference Maker reference 567178

567178 - GARDE BOUE DROIT

More information

Quantity required : 1
B0250365 - PARE CHOC ARR

11
P2R reference P2R reference 121369
Maker reference Maker reference B0250365

B0250365 - PARE CHOC ARR

More information

Quantity required : 1
031116 - BOULON

12
P2R reference P2R reference 65644
Maker reference Maker reference 0311165

031116 - BOULON

More information

Quantity required : 4
255988 - TAMPON

13
P2R reference P2R reference 111082
Maker reference Maker reference 255988

255988 - TAMPON

More information

Quantity required : 2
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

14
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 4
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

15
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 4
567839 - JOINT

16
P2R reference P2R reference 113608
Maker reference Maker reference 567839

567839 - JOINT

More information

Quantity required : 1
109329 - RONDELLE

18
P2R reference P2R reference 65697
Maker reference Maker reference 109329

109329 - RONDELLE

More information

Quantity required : 4
264097 - PARE BOUE

19
P2R reference P2R reference 113864
Maker reference Maker reference 264097

264097 - PARE BOUE

More information

Quantity required : 2
264165 - EQUERRE

20
P2R reference P2R reference 111220
Maker reference Maker reference 264165

264165 - EQUERRE

More information

Quantity required : 2
