Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

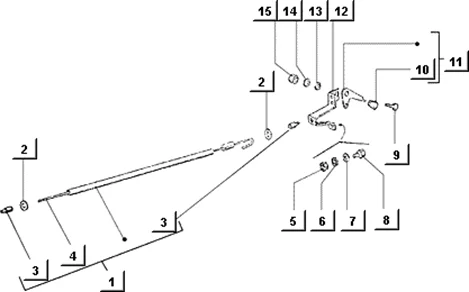

Châssis : T66 COMMANDE CHAUFFAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/321/Ape_Mix_50_2T_1998-2008_T66.PNG)
1 |
125503 - TRANSMISSION More informationQuantity required : 1 |
||||||
|
2 |
016516 - PASSE CABLE More informationQuantity required : 2 |
||||||
|
3 |
119278 - EMBOUT More informationQuantity required : 2 |
||||||
|
4 |
119273 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
5 |
020105 - ECROU S02010500 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
6 |
016405 - RONDELLE S01640500 More informationQuantity required : 3 |
||||||
|
7 |
003055 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
8 |
031056 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
9 |
031119 - BOULON More informationQuantity required : 1 |
||||||
|
10 |
616842 - LEVIER COMMANDE MARCHE ARRIERE More informationQuantity required : 1 |
||||||
|
11 |
125185 - LEVETTA CON PO More informationQuantity required : 1 |
||||||
|
12 |
1252836 - CHARNIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/4/img/63844.jpg)
14 |
007608 - RONDELLE S00760800 More informationQuantity required : 1 |
||||||
|
15 |
002438 - ECROU S00243800 More informationQuantity required : 1 |
