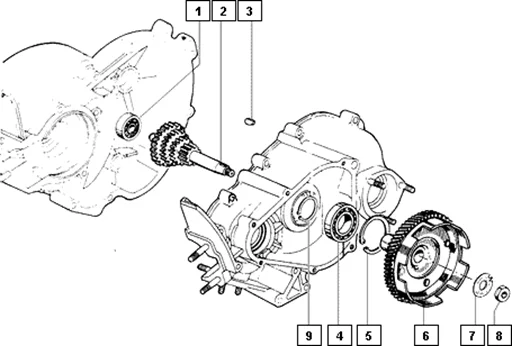

Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

Moteur : T10 ENGRENAGE MULTIPLE - ENGRENAGE HELICOÏDAL
Engrenage multiple - engrenage helicoïdal
Search
007035 - ROULEMENT S00703500

1
P2R reference P2R reference 151165
Maker reference Maker reference 0070355

007035 - ROULEMENT S00703500

More information

Quantity required : 1
1250834 - ENGRENAGE

2
P2R reference P2R reference 122241
Maker reference Maker reference 1250834

1250834 - ENGRENAGE

More information

Quantity required : 1
WOODRUFF KEY "PIAGGIO GENUINE PART" 50 APE -011753-

3
P2R reference P2R reference 65340
Maker reference Maker reference 0117535

WOODRUFF KEY "PIAGGIO GENUINE PART" 50 APE -011753-

More information

Quantity required : 1
007130 - ROULEMENT S00713000

4
P2R reference P2R reference 115363
Maker reference Maker reference 0071305

007130 - ROULEMENT S00713000

More information

Quantity required : 1
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647-

5
P2R reference P2R reference 63825
Maker reference Maker reference 0066475

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647-

More information

Quantity required : 1
ROLLER CAGE - CLUTCH "PIAGGIO GENUINE PART" 50 APE -436951-

6
P2R reference P2R reference 122895
Maker reference Maker reference 4363951

ROLLER CAGE - CLUTCH "PIAGGIO GENUINE PART" 50 APE -436951-

More information

Quantity required : 1
244297 - RONDELLE FREIN

7
P2R reference P2R reference 65990
Maker reference Maker reference 244297

244297 - RONDELLE FREIN

More information

Quantity required : 1
001508 - ECROU S00150800

8
P2R reference P2R reference 63757
Maker reference Maker reference 0015085

001508 - ECROU S00150800

More information

Quantity required : 1
006425 - CIRCLIPS S00642500

9
P2R reference P2R reference 63817
Maker reference Maker reference 0064255

006425 - CIRCLIPS S00642500

More information

Quantity required : 1
