Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Mix 50 2T 1998-2008 PIAGGIO VU

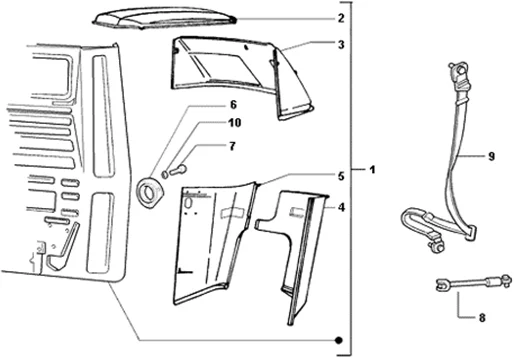

Châssis : T33 PIECES COMPOSANT LE CHASSIS (CABINE)
Pieces composant le chassis (cabine)
Search
6611735 - PAVILLON

2
P2R reference P2R reference 120872
Maker reference Maker reference 6611735

6611735 - PAVILLON

More information

Quantity required : 1
5686105 - FACE AVT

3
P2R reference P2R reference 120542
Maker reference Maker reference 5686105

5686105 - FACE AVT

More information

Quantity required : 1
2640745 - PARTIE AVT D

4
P2R reference P2R reference 121316
Maker reference Maker reference 2640745

2640745 - PARTIE AVT D

More information

Quantity required : 1
2640735 - PARTIE AVT G

5
P2R reference P2R reference 121351
Maker reference Maker reference 2640735

2640735 - PARTIE AVT G

More information

Quantity required : 1
567084 - BOUCHON

6
P2R reference P2R reference 113792
Maker reference Maker reference 567084

567084 - BOUCHON

More information

Quantity required : 1
B007256 - BOUCHON

6
P2R reference P2R reference 115252
Maker reference Maker reference B007256

B007256 - BOUCHON

More information

Quantity required : 1
SCREW - -008432-

7
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW - -008432-

More information

Quantity required : 3
56538R - CEINTURE SECURITE

9
P2R reference P2R reference 120698
Maker reference Maker reference 56538R

56538R - CEINTURE SECURITE

More information

Quantity required : 1
003054 - RONDELLE S00305400

10
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

003054 - RONDELLE S00305400

More information

Quantity required : 3
