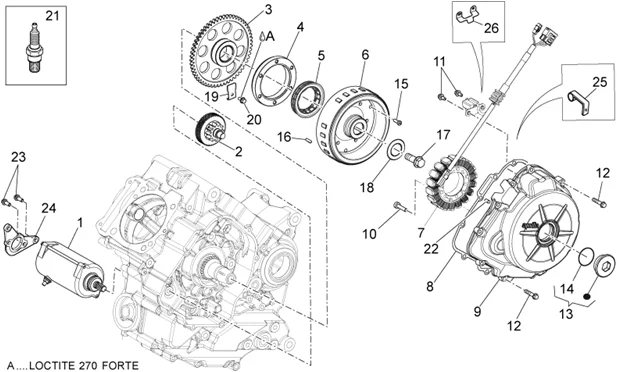

Moteur : 29.51 GROUPE ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_29.51.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/3/3/img/68633.jpg)
1 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO, 850 SRV, MANA/GILERA 800 GP -82697R- More informationQuantity required : 1 |
||||||
2 |
TORQUE LIMITOR "PIAGGIO GENUINE PART" APRILIA 900 SHIVER 2017>2018, DORSODURO 2017, 1200 CAPONORD 2014>2017 -876954- More informationQuantity required : 1 |
||||||
|
3 |
848714 - COURONNE DEMARR.ELECTR. More informationQuantity required : 1 |
||||||
|
4 |
830390 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/2/img/68912.JPG)
5 |
830389 - ROUE LIBRE More informationQuantity required : 1 |
||||||
|
6 |
642387 - ROTOR CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/4/9/7/img/38497.JPG)
7 |
640168 - STATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/3/6/img/62036.JPG)
8 |
B017756 - JOINT COUVERCLE VOLANT More informationQuantity required : 1 |
||||||
|
9 |
B014391 - CARTER DE VOLANT More informationQuantity required : 1 |
||||||
|
10 |
122637 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.JPG)
11 |
1A003109 - VIS M5X16 More informationQuantity required : 2 |
||||||
|
12 |
874551 - VIS BRIDE More informationQuantity required : 10 |
||||||
|
13 |
8716755 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/0/9/img/43309.JPG)
14 |
974219 - JOINT More informationQuantity required : 1 |
||||||
|
15 |
B013207 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
16 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267- More informationQuantity required : 1 |
||||||
|
17 |
848341 - VIS More informationQuantity required : 1 |
||||||
|
17 |
B015563 - VIS More informationQuantity required : 1 |
||||||
|
18 |
871494 - RONDELLE More informationQuantity required : 1 |
||||||
|
18 |
825725 - RONDELLE More informationQuantity required : 1 |
||||||
|
19 |
848845 - TTLE More informationQuantity required : 1 |
||||||
|
20 |
878872 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/4/5/img/67845.jpg)
21 |
SPARK PLUG "NGK" CR8EKB "PIAGGIO GENUINE PART" 125-300 MP3, BEVERLY, X7, GTS/APRILIA 125 ATLANTIC/GILERA 125 NEXUS/MOTO-GUZZI GRISO, NORGE, STELVIO -639687- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
22 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/0/img/70430.jpg)
23 |
872432 - VIS More informationQuantity required : 2 |
||||||
|
24 |
B013071 - BRIDE More informationQuantity required : 1 |
||||||
|
25 |
487824 - COLLIER More informationQuantity required : 1 |
||||||
|
26 |
848647 - PLAQUETTE More informationQuantity required : 1 |
