Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

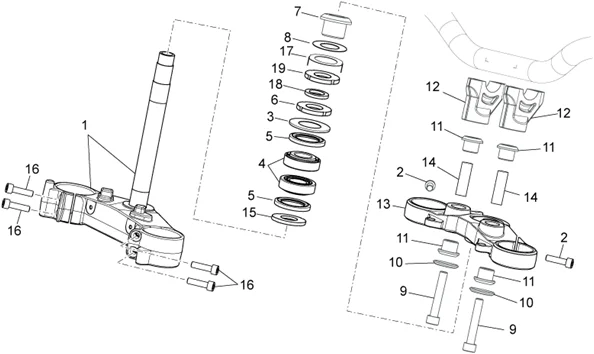

Chassis : 28.06 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.06.PNG)
1 |
896330 - PLAQUE INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
2 |
SCREW - ON FORK UPPER PLATE M8X30 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA/MOTO-GUZZI -AP8150540- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
3 |
AP8123644 - ANNEAU PARE-POUSS. More informationQuantity required : 1 |
||||||
|
4 |
896678 - ROULEMENT A BILLES More informationQuantity required : 2 |
||||||
|
5 |
896260 - ANNEAU PARE-POUSS. More informationQuantity required : 2 |
||||||
|
6 |
897625 - BAGUE More informationQuantity required : 1 |
||||||
|
7 |
896327 - BOUCHON More informationQuantity required : 1 |
||||||
|
8 |
896961 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
9 |
AP8150049 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.JPG)
10 |
AP8123721 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
11 |
AP8144222 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
12 |
898419 - CAVALIER INF. More informationQuantity required : 2 |
||||||
|
13 |
896338 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
14 |
854827 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
15 |
897626 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
16 |
AP8150236 - VIS More informationQuantity required : 4 |
||||||
|
17 |
896684 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/7/5/img/42575.jpg)
18 |
896685 - RONDELLE More informationQuantity required : 1 |
||||||
|
19 |
896683 - CONTRE-BAGUE More informationQuantity required : 1 |
