Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

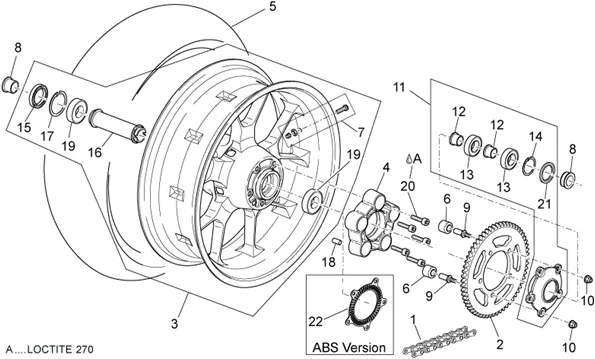

Chassis : 28.28 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.28.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/5/7/img/39157.JPG)
1 |
851612 - CHAINE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/7/4/0/img/45740.JPG)
2 |
AP8107145 - CORONA Z=40 More informationQuantity required : 1 |
||||||
3 |
860694 - ROUE AR NOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/6/0/6/img/42606.JPG)
3 |
896756 - ROUE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/6/0/8/img/108608.jpg)
4 |
SILENTBLOC FOR REAR WHEEL "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1000 RSV-2, RSV-4, TUONO, 1200 CAPONORD -2B000639R- More informationQuantity required : 1 |
||||||
|
5 |
85197R - PNEU AR PIRELLI 180/55-ZR17 73W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/5/img/72805.jpg)
6 |
SILENTBLOC FOR REAR CHAIN SPROCKET "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV -B043317- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
7 |
TUBELESS TYRE VALVE "PIAGGIO GENUINE PART" COMMON FOR APRILIA /MOTO-GUZZI MOTORBIKES -AP8101744- More informationQuantity required : 1 |
||||||
|
8 |
AP8121592 - DISTANZIALE RUOTA POST. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/3/img/72853.jpg)
9 |
REAR CHAIN SPROCKET PIN "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV -B045033- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/4/img/67084.jpg)
10 |
564878 - ECROU More informationQuantity required : 5 |
||||||
|
11 |
AP81257305 - PORTE-COURONNE CPL. More informationQuantity required : 1 |
||||||
|
12 |
AP8125732 - ENTRETOISE JOINT ELAST. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/1/img/45831.JPG)
13 |
AP8110081 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/9/img/46749.JPG)
14 |
AP8121212 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 1 |
||||||
|
15 |
AP8125838 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
16 |
AP8128170 - DISTANZIALE INT.RUOTA POST. More informationQuantity required : 1 |
||||||
|
17 |
AP8125788 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
17 |
AP8125839 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/4/img/50884.JPG)
18 |
AP8150463 - GOUPILLE More informationQuantity required : 1 |
||||||
|
19 |
AP8106806 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/2/img/71272.jpg)
19 |
REAR WHEEL BEARING (25X52X15 - 6205)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8110093- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
20 |
AP8150195 - VIS More informationQuantity required : 5 |
||||||
|
21 |
AP8121213 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/0/6/img/70806.JPG)
22 |
PHONIC WHEEL - REAR ABS "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4 -890960- More informationQuantity required : 1 |
