Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

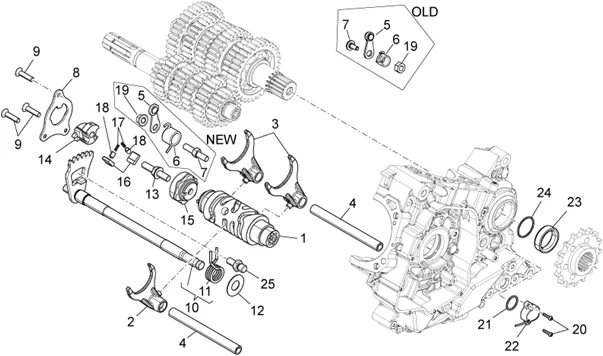

Moteur : 29.46 SELECTEUR BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_29.46.PNG)
1 |
875796 - TAMBOUR More informationQuantity required : 1 |
||||||
|
2 |
874599 - FOURCHE More informationQuantity required : 1 |
||||||
|
3 |
879554 - FOURCHE More informationQuantity required : 2 |
||||||
|
4 |
873772 - TIGE More informationQuantity required : 2 |
||||||
|
5 |
872154 - LEVIER More informationQuantity required : 1 |
||||||
|
6 |
B013306 - RESSORT More informationQuantity required : 1 |
||||||
|
7 |
B013928 - TIGE FILETEE More informationQuantity required : 1 |
||||||
|
7 |
879129 - VIS More informationQuantity required : 1 |
||||||
|
8 |
871649 - PLAQUETTE BUTEE More informationQuantity required : 1 |
||||||
|
9 |
878867 - VIS More informationQuantity required : 3 |
||||||
|
10 |
B0144375 - ARBRE More informationQuantity required : 1 |
||||||
|
11 |
971719 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
971718 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
878870 - VIS SPECIALE More informationQuantity required : 1 |
||||||
|
14 |
872560 - SELECTOR SPROKET More informationQuantity required : 1 |
||||||
|
15 |
B017809 - TAMBOUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/3/3/img/97633.jpg)
16 |
AP9150069 - SALTARELLO PER ROCCHET More informationQuantity required : 2 |
||||||
|
17 |
AP9150064 - MOLLA PER PUNTALE SALT More informationQuantity required : 2 |
||||||
|
18 |
AP9150070 - PUNTALE PER SALTARELLO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
19 |
597565 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
20 |
SCREW - (5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER -B0167965- More informationQuantity required : 2 |
||||||
|
21 |
877441 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/5/img/69755.jpg)
22 |
SENSOR FOR GEAR POSITION "PIAGGIO GENUINE PART" APRILIA 900 DORSODURO, SHIVER, 1000 RSV-4, TUONO/MOTO-GUZZI 1400 CALIFORNIA -857265- More informationQuantity required : 1 |
||||||
|
23 |
974558 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/1/2/img/41312.jpg)
24 |
871901 - JOINT More informationQuantity required : 1 |
||||||
|
25 |
974130 - PIVOT More informationQuantity required : 1 |
