Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

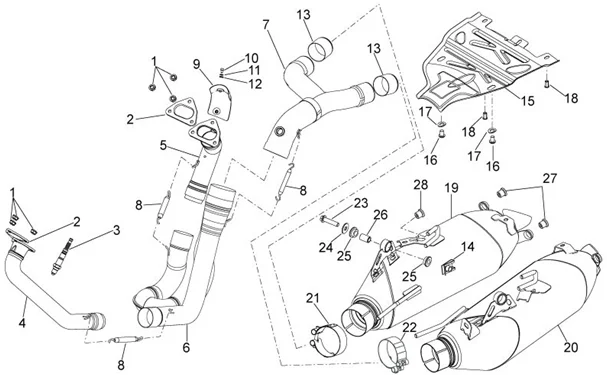

Chassis : 28.25 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.JPG)
1 |
NUT - CAP NUT M8 FOR EXHAUST OR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92660021- More informationQuantity required : 6 |
||||||
2 |
895836 - JOINT ECHAPPEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/6/img/70836.jpg)
3 |
LAMBDA SENSOR "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, V7, NEVADA, 850 V9, 1200 STELVIO, DORSODURO, CAPONORD -896110- More informationQuantity required : 1 |
||||||
|
4 |
895354 - COLLECTEUR ECHAP. More informationQuantity required : 1 |
||||||
|
4 |
895813 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
|
5 |
895355 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
|
6 |
895356 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
|
7 |
895357 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
||||||
|
8 |
AP8121170 - RESSORT More informationQuantity required : 3 |
||||||
|
9 |
896656 - PROTECTION More informationQuantity required : 1 |
||||||
|
10 |
AP8150505 - VITE TCEI M4X6 INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
11 |
AP8150158 - RONDELLE More informationQuantity required : 2 |
||||||
|
12 |
AP8150483 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/6/img/73436.jpg)
13 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO -GU05128230- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
14 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268- More informationQuantity required : 2 |
||||||
|
15 |
896655 - PROTECTION More informationQuantity required : 1 |
||||||
|
16 |
AP8152055 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
17 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
18 |
AP8201755 - RIVET FILETE More informationQuantity required : 2 |
||||||
|
19 |
896703 - SILENCIEUX D More informationQuantity required : 1 |
||||||
|
20 |
896704 - SILENCIEUX G More informationQuantity required : 1 |
||||||
|
21 |
898251 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/3/9/img/39139.JPG)
22 |
851586 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
23 |
AP8152289 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
24 |
AP8150018 - RONDELLE More informationQuantity required : 2 |
||||||
|
25 |
856914 - CAOUTCHOUC SUPPORT POT D'ECHAPPEMENT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/5/img/71465.jpg)
26 |
AP8121455 - DOUILLE ENTRETOISE; More informationQuantity required : 2 |
||||||
|
27 |
860171 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
28 |
856914 - CAOUTCHOUC SUPPORT POT D'ECHAPPEMENT More informationQuantity required : 2 |
