Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

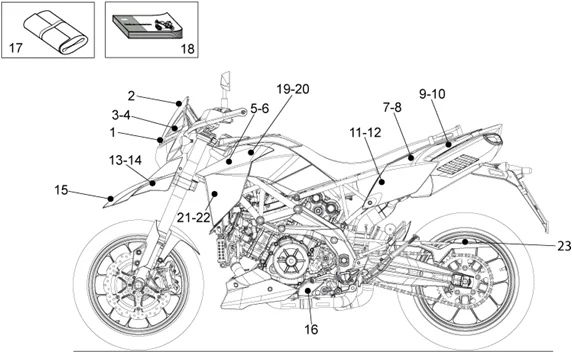

Chassis : 28.35 DÉCALCO - TROUSSE À OUTILS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.35.PNG)
1 |
898096 - DECALCO More informationQuantity required : 1 |
||||||
|
2 |
895434 - DECALCO More informationQuantity required : 1 |
||||||
|
3 |
898097 - DECALCO More informationQuantity required : 1 |
||||||
|
4 |
898098 - DECALCO More informationQuantity required : 1 |
||||||
|
5 |
898099 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/2/0/img/62220.jpg)
5 |
B044285 - DECALCO More informationQuantity required : 1 |
||||||
|
5 |
B044293 - DECALCO More informationQuantity required : 1 |
||||||
|
6 |
898100 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/2/1/img/62221.jpg)
6 |
B044286 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/2/9/img/62229.jpg)
6 |
B044294 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/5/3/img/42953.jpg)
7 |
DECAL- LEFT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO APRILIA 1200 DORSODURO -898439- More informationQuantity required : 1 |
||||||
|
7 |
B044360 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/5/4/img/42954.jpg)
8 |
DECAL- RIGHT REAR COWL "PIAGGIO GENUINE PART" APRILIA 1200 DORSODURO -898440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/5/1/img/62251.jpg)
8 |
B044361 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/0/8/img/42908.jpg)
9 |
DECAL- RIGHT REAR COWL "PIAGGIO GENUINE PART" APRILIA 1200 DORSODURO -898104 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/0/9/img/42909.jpg)
10 |
DECAL- LEFT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO APRILIA 1200 DORSODURO -898105- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/1/0/img/42910.jpg)
11 |
DECAL- RIGHT REAR COWL "PIAGGIO GENUINE PART" APRILIA 1200 DORSODURO -898106- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/1/1/img/42911.jpg)
12 |
DECAL- LEFT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO APRILIA 1200 DORSODURO -898107- More informationQuantity required : 1 |
||||||
|
13 |
898108 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
898437 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/2/6/img/62226.jpg)
13 |
B044291 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
B044299 - DECALCO More informationQuantity required : 1 |
||||||
|
14 |
898109 - DECALCO More informationQuantity required : 1 |
||||||
|
14 |
898438 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/2/7/img/62227.jpg)
14 |
B044292 - DECALCO More informationQuantity required : 1 |
||||||
|
14 |
B044300 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
860732 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/7/0/img/43270.jpg)
15 |
899867 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
895839 - DECALCO More informationQuantity required : 1 |
||||||
|
17 |
856833 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
18 |
|
||||||
|
18 |
|
||||||
|
18 |
|
||||||
|
19 |
B044287 - DECALCO More informationQuantity required : 1 |
||||||
|
19 |
B044295 - DECALCO More informationQuantity required : 1 |
||||||
|
20 |
B044288 - DECALCO More informationQuantity required : 1 |
||||||
|
20 |
B044296 - DECALCO More informationQuantity required : 1 |
||||||
|
21 |
B044289 - DECALCO More informationQuantity required : 1 |
||||||
|
21 |
B044297 - DECALCO More informationQuantity required : 1 |
||||||
|
22 |
B044290 - DECALCO More informationQuantity required : 1 |
||||||
|
22 |
B044298 - DECALCO More informationQuantity required : 1 |
||||||
|
23 |
890198 - DECALCO More informationQuantity required : 1 |
