Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

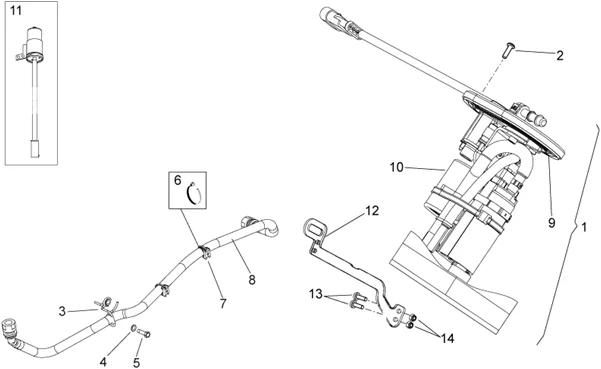

Chassis : 28.13 POMPE ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.13.PNG)
1 |
894785 - ENSEMBLE POMPE More informationQuantity required : 1 |
||||||
|
1 |
B043926 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
2 |
AP8152273 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
3 |
AP8181139 - PARE-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.JPG)
4 |
AP8152181 - RONDELLE FER PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
5 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
|
6 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 2 |
||||||
|
7 |
896675 - SUPPORT More informationQuantity required : 2 |
||||||
|
8 |
894671 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/8/img/73408.JPG)
9 |
FUEL PUMP GASKET "PIAGGIO GENUINE PART" APRILIA 750-1100-1200 DORSODURO, 750-900 SHIVER/MOTO-GUZZI 1400 CALIFORNIA, AUDACE, 750 BREVA, NEVADA, V11 -GU01107490- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/6/img/73406.jpg)
10 |
FUEL FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -GU01106090- More informationQuantity required : 1 |
||||||
|
11 |
899069 - DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/2/img/46742.jpg)
13 |
AP8121184 - VITE TBCE M4X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
14 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
