Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

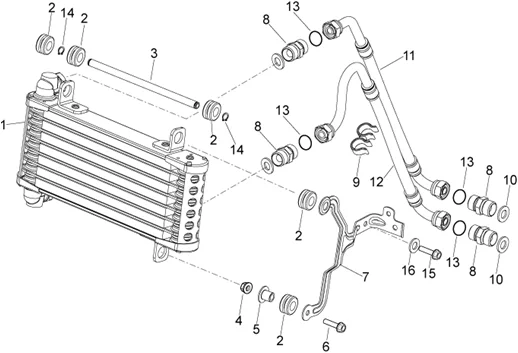

Chassis : 28.225 RADIATORE OLIO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.225.PNG)
1 |
2B000896 - RADIATEUR HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
2 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 5 |
||||||
|
3 |
896760 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
4 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
5 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
6 |
AP8152280 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
7 |
895217 - BRIDE More informationQuantity required : 1 |
||||||
|
8 |
GU01161331 - REDUCTION More informationQuantity required : 4 |
||||||
|
9 |
898733 - PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
10 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230- More informationQuantity required : 4 |
||||||
|
11 |
893841 - TUYAU HUILE More informationQuantity required : 1 |
||||||
|
12 |
893842 - TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/9/img/70889.jpg)
13 |
899064 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
|
14 |
AP8121428 - BAGUE SEEGER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
15 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
16 |
658830 - RONDELLE More informationQuantity required : 1 |
