Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

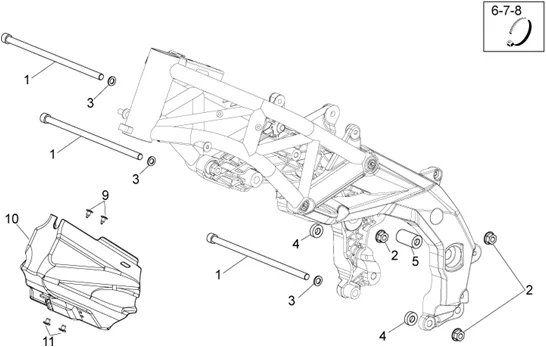

Chassis : 28.02 CHASSIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.02.PNG)
1 |
851784 - TIRANT PRISE MOTEUR; More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
2 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/7/img/50837.jpg)
3 |
AP8150101 - WASHER More informationQuantity required : 3 |
||||||
|
4 |
853036 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
896014 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.JPG)
6 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.JPG)
7 |
AP8120657 - COLLIER More informationQuantity required : 3 |
||||||
|
8 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
9 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616- More informationQuantity required : 2 |
||||||
|
10 |
897010 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
11 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 2 |
