Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

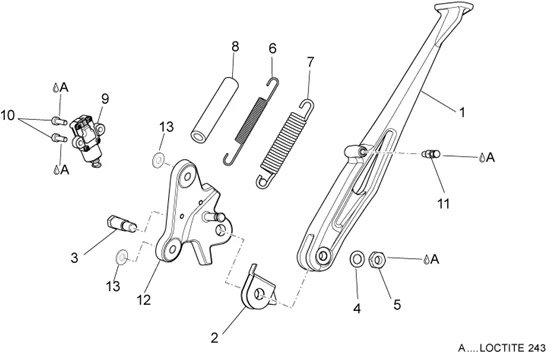

Chassis : 28.05 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.05.PNG)
1 |
858508 - BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
|
2 |
858509 - BEQUILLE PLAQUETTE More informationQuantity required : 1 |
||||||
|
3 |
AP8161119 - PERNO CAVALLETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.JPG)
4 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
5 |
NUT - FOR SIDE STAND (10X1,25) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8152001- More informationQuantity required : 1 |
||||||
|
6 |
AP9100669 - MOLLA CAVALLETTO INTERNA More informationQuantity required : 1 |
||||||
|
7 |
AP9100668 - MOLLA CAVALLETTO ESTERNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
8 |
SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/3/8/img/139438.JPG)
9 |
AP81278565 - INTERRUTTORE LINEARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/9/img/71819.jpg)
10 |
AP8150050 - VIS More informationQuantity required : 2 |
||||||
|
11 |
860905 - TIGE More informationQuantity required : 1 |
||||||
|
12 |
858507 - PLAQUE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
13 |
AP8150018 - RONDELLE More informationQuantity required : 2 |
