Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

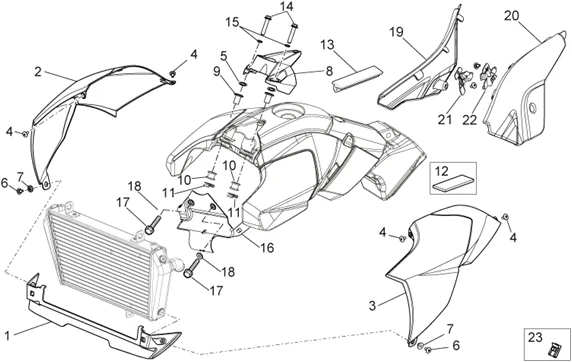

Chassis : 28.11 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.11.PNG)
1 |
894888 - CONVOYEUR More informationQuantity required : 1 |
||||||
|
2 |
89688300BM - AILE D More informationQuantity required : 1 |
||||||
|
2 |
89688300XN5 - AILE D More informationQuantity required : 1 |
||||||
|
2 |
B04430300XN2 - FLANC D, NOIR More informationQuantity required : 1 |
||||||
|
2 |
B04430700XN2 - FLANC D, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/4/1/img/62241.jpg)
3 |
FRONT LEFT SIDE BODY "PIAGGIO GENUINE PART" APRILIA DORSODURO 1200 BLACK -B04430800XN2- More informationQuantity required : 1 |
||||||
|
3 |
B04430400XN2 - FLANC G, NOIR More informationQuantity required : 1 |
||||||
|
3 |
89688400XN5 - AILE G More informationQuantity required : 1 |
||||||
|
3 |
89688400BM - AILE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
4 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/3/img/50823.jpg)
5 |
AP8150016 - RONDELLE FER PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.JPG)
7 |
AP8120253 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
8 |
894883 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
9 |
AP8121718 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
10 |
AP8144328 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
12 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 2 |
||||||
|
13 |
AP8117275 - GUARNIZIONE ANTICALORE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
14 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/1/img/50941.jpg)
15 |
AP8152037 - RONDELLE FER PLATE More informationQuantity required : 2 |
||||||
|
16 |
895205 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
17 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.JPG)
18 |
AP8121991 - DOUILLE; More informationQuantity required : 2 |
||||||
|
19 |
899235 - PROTECTION ANTI-CHALEUR D. More informationQuantity required : 1 |
||||||
|
20 |
899236 - PROTECTION ANTI-CHALEUR G. More informationQuantity required : 1 |
||||||
|
21 |
899346 - SUPPORT PROTECTION ANTI-CHALEUR D. More informationQuantity required : 1 |
||||||
|
22 |
899347 - SUPPORT PROTECTION ANTI-CHALEUR G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
23 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
