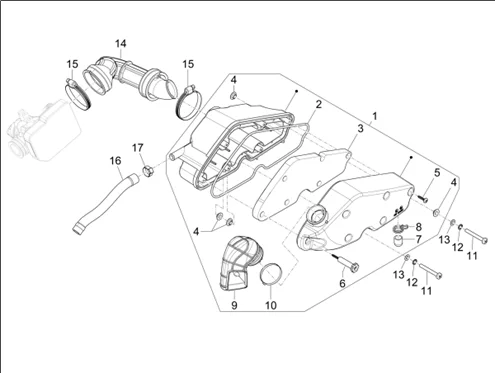

Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA) VESPA

Moteur : 01.45 FILTRE À AIR
Filtre à air
Search
1A019292 - BOITIER FILTRE A AIR COMPL.

1
P2R reference P2R reference 204984
Maker reference Maker reference 1A019292

1A019292 - BOITIER FILTRE A AIR COMPL.

More information

Quantity required : 1

B018254 - JOINT

2
P2R reference P2R reference 94818
Maker reference Maker reference B018254

B018254 - JOINT

More information

Quantity required : 1

B0182130P - FILTRE

3
P2R reference P2R reference 204985
Maker reference Maker reference B0182130P

B0182130P - FILTRE

More information

Quantity required : 1

830056 - BAGUE

4
P2R reference P2R reference 68888
Maker reference Maker reference 830056

830056 - BAGUE

More information

Quantity required : 4

SCREW - 3x20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146

5
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146

More information

Quantity required : 5

B018204 - BOUTON

6
P2R reference P2R reference 94813
Maker reference Maker reference B018204

B018204 - BOUTON

More information

Quantity required : 1

CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831

7
P2R reference P2R reference 68701
Maker reference Maker reference 827831

CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831

More information

Quantity required : 1

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910

8
P2R reference P2R reference 72895
Maker reference Maker reference CM002910

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910

More information

Quantity required : 1

1B012843 - SUCTION TUBE

9
P2R reference P2R reference 226813
Maker reference Maker reference 1B012843

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910

More information

Quantity required : 1

257134 - COLLIER

10
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 1

SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640

11
P2R reference P2R reference 65448
Maker reference Maker reference 0186405

SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640

More information

Quantity required : 2

012533 - RONDELLE

12
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

012533 - RONDELLE

More information

Quantity required : 2

003056 - RONDELLE

13
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 2

1A025040 - AIR BOX COUPLING

14
P2R reference P2R reference 209412
Maker reference Maker reference 1A025040

1A025040 - AIR BOX COUPLING

More information

Quantity required : 1

614188 - COLLIER

15
P2R reference P2R reference 111556
Maker reference Maker reference 614188

614188 - COLLIER

More information

Quantity required : 2

1A000335 - TUBE

16
P2R reference P2R reference 75298
Maker reference Maker reference 1A000335

1A000335 - TUBE

More information

Quantity required : 1

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904

17
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904

More information

Quantity required : 1
