Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

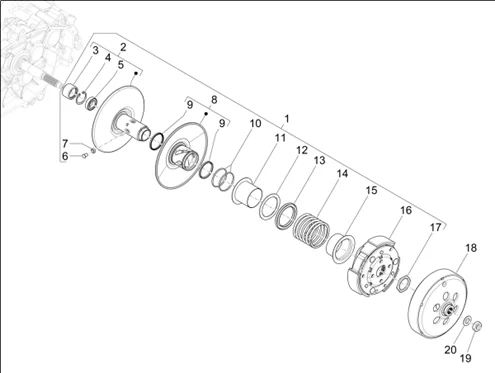

Moteur : 01.14 POULIE ENTRAINEE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_01.14.png)
1 |
CM167104 - POULIE AVEC EMBRAYAGE More informationQuantity required : 1 |
||||||
|
2 |
B017979 - DEMI POULIE More informationQuantity required : 1 |
||||||
|
3 |
1A013798R - CAGE A ROULEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/8/img/73678.jpg)
4 |
SNAP RING FOR TORQUE DRIVER "PIAGGIO GENUINE PART" FLY 125-150, LIBERTY 125-150, MP3 125-250-300-400-500/125 VESPA LX, GTS, VESPA-S -006628 More informationQuantity required : 1 |
||||||
|
5 |
880512 - ROULEMENT More informationQuantity required : 1 |
||||||
|
6 |
B014466 - PIVOT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/3/img/66393.jpg)
7 |
431091 - ROULEAU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/8/8/img/94788.jpg)
8 |
ADJUSTABLE HALF PULLEY "PIAGGIO GENUINE PART" 125 FLY, VESPA LX, VESPA-S 2012> 3 SOUPAPES -B017974 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/7/img/66237.jpg)
9 |
289950 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/1/img/66231.jpg)
10 |
289840 - JOINT More informationQuantity required : 2 |
||||||
|
11 |
880539 - DOUILLE More informationQuantity required : 1 |
||||||
|
12 |
880540 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
880541 - COUPELLE More informationQuantity required : 1 |
||||||
|
14 |
B013304 - RESSORT More informationQuantity required : 1 |
||||||
|
15 |
880543 - COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/5/2/2/img/149522.jpg)
16 |
CM167206 - GR.EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/9/img/66239.jpg)
17 |
NUT - FOR CLUTCH "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -289955 More informationQuantity required : 1 |
||||||
|
18 |
1A004103 - TAMBOUR D'EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/4/9/img/72749.jpg)
19 |
B016992 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/2/img/66132.jpg)
20 |
WASHER (22X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -274246 More informationQuantity required : 1 |
