Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

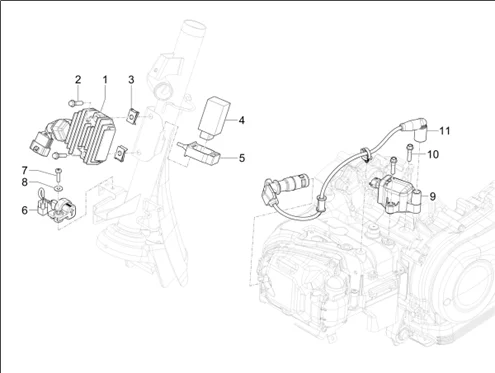

Circuit électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_06.06.png)
1 |
1A016315R - REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
4 |
680175 - CENTALE CLIGNOTANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/6/img/66246.jpg)
5 |
291017 - SUPPORT More informationQuantity required : 1 |
||||||
|
6 |
D9004464092 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
7 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
8 |
097733 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/7/img/67947.jpg)
9 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 FLY3 VALVES, LIBERTY 3 VALVES, VESPA LX 3 VALVES, 125-350 YOURBAN, BEVERLY, X-10 -641901 More informationQuantity required : 1 |
||||||
|
10 |
874549 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
11 |
6801454 - CABLE H.T. More informationQuantity required : 1 |
