Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

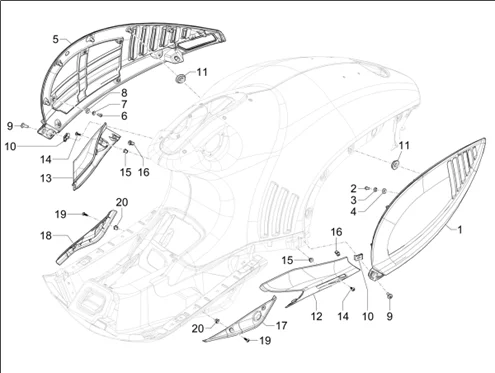

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_02.32.png)
1 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014 More informationQuantity required : 6 |
||||||
|
3 |
1B000266 - BAGUE More informationQuantity required : 6 |
||||||
|
4 |
1B000267 - ENTRETOISE More informationQuantity required : 6 |
||||||
|
5 |
1B000267 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014 More informationQuantity required : 6 |
||||||
|
7 |
1B000266 - BAGUE More informationQuantity required : 6 |
||||||
|
8 |
1B000267 - ENTRETOISE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
9 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
11 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888 More informationQuantity required : 12 |
||||||
|
12 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888 More informationQuantity required : 1 |
||||||
|
12 |
675512 - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
13 |
675512 - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
13 |
675513 - COUVERTURE SPOILER DR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
14 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
15 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
16 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 2 |
||||||
|
17 |
675457 - COUVRE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
18 |
675458 - COUVRE SPOILER DRT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
19 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
|
20 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 4 |
