Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

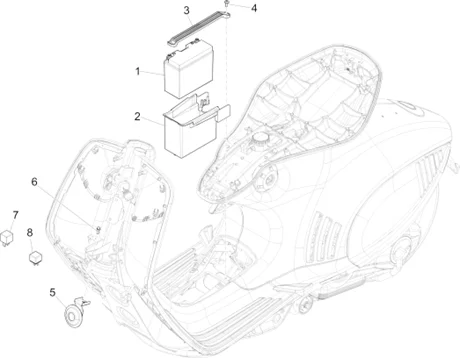

Circuit électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_06.05.png)
1 |
AP8127619 - BATTERIE YUASA YT12B-BS More informationQuantity required : 1 |
||||||
|
2 |
675538 - SUPPORT More informationQuantity required : 1 |
||||||
|
3 |
675961 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
4 |
CM179301 - VIS More informationQuantity required : 2 |
||||||
|
5 |
CM071819 - AVERTISSEUR More informationQuantity required : 1 |
||||||
|
6 |
874554 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/6/img/139406.jpg)
7 |
RELAY+RESISTANCE 12V 30A "PIAGGIO GENUINE PART" 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD -1D001636 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/5/5/img/92155.jpg)
8 |
680172 - RELAIS DEMARREUR More informationQuantity required : 1 |
