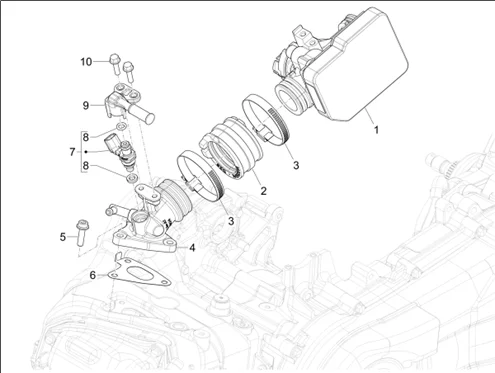

Moteur : 01.36 BOÎTIER PAPILLON - INJECTEUR - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_01.36.png)
1 |
B0160435 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
1A025041 - INTAKE FITTING COUPLING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
3 |
614188 - COLLIER More informationQuantity required : 2 |
||||||
|
4 |
CM3367047 - BOITIER PAPILLON AVEC ECU More informationQuantity required : 1 |
||||||
|
5 |
1A011564 - BOULON M6 X 22 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/3/4/img/127234.jpg)
6 |
1A003750 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/7/4/img/127574.jpg)
7 |
INJECTOR "PIAGGIO GENUINE PART" 50-125 LIBERTY, PRIMAVERA, SPRINT IGET 3 SOUPAPES -1D000698 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/6/img/127596.jpg)
8 |
1D001198 - SET SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/1/8/img/149118.jpg)
9 |
1A003720 - CORPS D'INJECTEUR More informationQuantity required : 1 |
||||||
|
10 |
1A003001 - VIS PARKER More informationQuantity required : 2 |
