Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA) VESPA

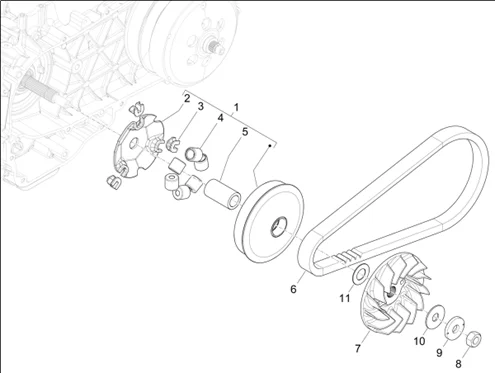

Moteur : 01.13 POULIE MOTRICE
Poulie motrice
Search
CM257704 - ROULEAU DE LOGEMENT

1
P2R reference P2R reference 140667
Maker reference Maker reference CM257704

CM257704 - ROULEAU DE LOGEMENT

More information

Quantity required : 1

VARIATOR ROLLER CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -485710

2
P2R reference P2R reference 66690
Maker reference Maker reference 485710

VARIATOR ROLLER CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -485710

More information

Quantity required : 1

1A015664 - PATIN

3
P2R reference P2R reference 203871
Maker reference Maker reference 1A015664

1A015664 - PATIN

More information

Quantity required : 3

GALET/ROULEAU ORIGINE PIAGGIO 125 GTS 2016>, MEDLEY 2016> (VENDU A L'UNITE) -CM308503

4
P2R reference P2R reference 207619
Maker reference Maker reference CM308503

GALET/ROULEAU ORIGINE PIAGGIO 125 GTS 2016>, MEDLEY 2016> (VENDU A L'UNITE) -CM308503

More information

Quantity required : 6

483889 - ENTRETOISE

5
P2R reference P2R reference 66648
Maker reference Maker reference 483889

483889 - ENTRETOISE

More information

Quantity required : 1

1A011455 - COURROIE

6
P2R reference P2R reference 162765
Maker reference Maker reference 1A011455

1A011455 - COURROIE

More information

Quantity required : 1

DRIVING HALF PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC INJECTION -876921

7
P2R reference P2R reference 70638
Maker reference Maker reference 876921

DRIVING HALF PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC INJECTION -876921

More information

Quantity required : 1

NUT - FOR DRIVEN PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -486324

8
P2R reference P2R reference 66709
Maker reference Maker reference 486324

NUT - FOR DRIVEN PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -486324

More information

Quantity required : 1

DRIVING PULLEY SPRING WASHER "PIAGGIO GENUINE PART"COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -880950

9
P2R reference P2R reference 70743
Maker reference Maker reference 880950

DRIVING PULLEY SPRING WASHER "PIAGGIO GENUINE PART"COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -880950

More information

Quantity required : 1

840533 - JOINT

10
P2R reference P2R reference 69153
Maker reference Maker reference 840533

840533 - JOINT

More information

Quantity required : 1

FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -831363

11
P2R reference P2R reference 68964
Maker reference Maker reference 831363

FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -831363

More information

Quantity required : 1
