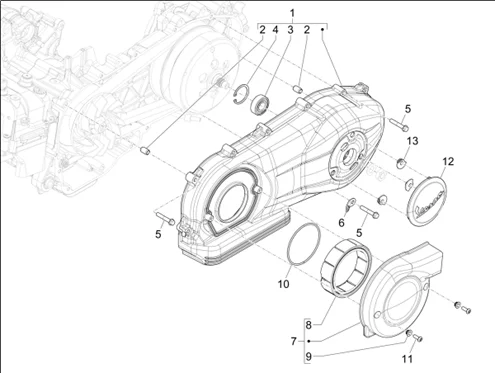

Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA) VESPA

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - Refoidissement carter
Search
1A0293735 - COUVERCLE DE LA TRANSMISSION COMPLET

1
P2R reference P2R reference 226809
Maker reference Maker reference 1A0293735

B017979 - DEMI POULIE

More information

Quantity required : 1

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956

2
P2R reference P2R reference 72696
Maker reference Maker reference B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956

More information

Quantity required : 2

BEARING (15.35.11) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -4789853

3
P2R reference P2R reference 66571
Maker reference Maker reference 4789853

BEARING (15.35.11) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -4789853

More information

Quantity required : 1

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635

4
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635

More information

Quantity required : 1

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838

5
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838

More information

Quantity required : 9

844964 - COLLIER

6
P2R reference P2R reference 69338
Maker reference Maker reference 844964

844964 - COLLIER

More information

Quantity required : 1

B018342 - COUVERCLE DE REFROIDISSEMENT

7
P2R reference P2R reference 94824
Maker reference Maker reference B018342

B018342 - COUVERCLE DE REFROIDISSEMENT

More information

Quantity required : 1

B018345 - FILTRE A AIR

8
P2R reference P2R reference 94825
Maker reference Maker reference B018345

B018345 - FILTRE A AIR

More information

Quantity required : 1

B015908 - BAGUE

9
P2R reference P2R reference 94670
Maker reference Maker reference B015908

B015908 - BAGUE

More information

Quantity required : 2

1A001027 - JOINT

10
P2R reference P2R reference 75337
Maker reference Maker reference 1A001027

1A001027 - JOINT

More information

Quantity required : 1

B016455 - VIS

11
P2R reference P2R reference 72707
Maker reference Maker reference B016455

B016455 - VIS

More information

Quantity required : 2

1A029371 - CACHE DU COUVERCLE DE LA TRANSMISSION

12
P2R reference P2R reference 226810
Maker reference Maker reference 1A029371

B016455 - VIS

More information

Quantity required : 1

RETAINER BUFFER FOR TRANSMISSION CASING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -871458

13
P2R reference P2R reference 70378
Maker reference Maker reference 871458

RETAINER BUFFER FOR TRANSMISSION CASING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -871458

More information

Quantity required : 3
